  • Concrete Anchor Spacing & Edge Distance: How Far Apart Should Anchors Be?

    Concrete Anchor Spacing & Edge Distance: How Far Apart Should Anchors Be?

    Concrete anchor spacing and edge distance play a critical role in how strong and safe an installation will be—especially when anchors are placed near slab edges or installed in groups. Even high-quality anchors can fail if spacing rules are ignored.

    This guide explains how far apart concrete anchors should be, how close they can safely be installed to edges, and how spacing requirements change depending on anchor type, load, and base material.

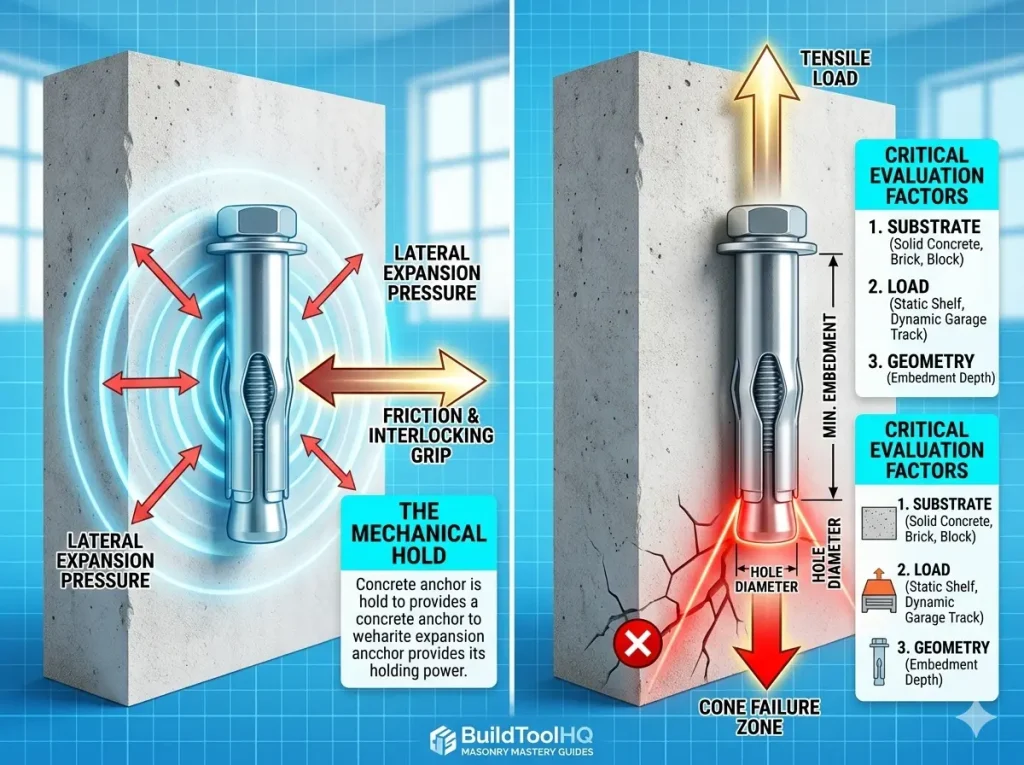

    Why Anchor Spacing and Edge Distance Matter

    Concrete is extremely strong in compression but relatively weak in tension. When an anchor expands or is placed under load, it creates outward pressure inside the concrete. If anchors are installed too close together—or too close to an edge—these stress zones overlap and can cause cracking, spalling, or sudden anchor failure.

    Even anchors selected correctly using (Best Concrete Anchors for Home Use – 2026 Guide) will not perform at their rated strength if spacing and edge-distance rules are ignored.

    Minimum Edge Distance (General Guidelines)

    Edge distance is the minimum space required between an anchor and the nearest concrete edge.

    General Rules of Thumb (Non-Structural Use)

    • Wedge anchors
      ➜ Minimum 5–7× anchor diameter
      (Example: ½″ anchor = 2½″–3½″ from edge)
    • Sleeve anchors
      ➜ Minimum 3–5× anchor diameter
    • Drop-in anchors
      ➜ Minimum 4–6× anchor diameter
    • Tapcon concrete screws
      ➜ Minimum 1½″–2″ from edge

    If installation near an edge is unavoidable, Tapcon screws and sleeve anchors are usually safer options than wedge anchors due to lower expansion force.

    Minimum Anchor Spacing (Between Anchors)

    Anchor spacing refers to the distance between two adjacent anchors.

    Typical Spacing Guidelines

    • Wedge anchors
      ➜ Minimum 10× anchor diameter
    • Sleeve anchors
      ➜ Minimum 6–8× anchor diameter
    • Drop-in anchors
      ➜ Minimum 8–10× anchor diameter
    • Tapcon screws
      ➜ Minimum 3–4″ apart

    Example:
    Two ½″ wedge anchors should be spaced at least 5″ apart, and more spacing is recommended for heavier loads.

    To understand how spacing affects holding strength, review (How Much Weight Can Concrete Anchors Hold?).

    Spacing Guidelines for Common Home Projects

    Wall Shelves & TV Mounts

    • Edge distance: ≥ 2½″
    • Anchor spacing: 4″–6″
    • Best anchors: Sleeve anchors or Tapcon screws

    Garage Storage Racks

    • Edge distance: ≥ 3″
    • Anchor spacing: 6″–8″
    • Best anchors: Wedge anchors or sleeve anchors

    Ceiling-Mounted Items

    • Increase spacing by 20–30%
    • Use drop-in anchors rated for overhead applications

    Proper drilling technique is just as important as spacing. If you’re unsure your drill is suitable, see (Best Drill for Concrete Walls (2025 Guide)) before starting.

    What Happens If Anchors Are Installed Too Close?

    Ignoring spacing and edge-distance rules can lead to:

    • ❌ Cracked or spalled concrete
    • ❌ Reduced holding capacity
    • ❌ Anchor pull-out under load
    • ❌ Premature failure over time

    Even light-duty installations can fail if anchors are clustered too tightly or installed near weak edges.

    Brick & Block Spacing Considerations

    Spacing rules change significantly when working with masonry instead of solid concrete.

    • Brick: Install anchors only in mortar joints
    • Concrete block (CMU): Use hollow-wall anchors or chemical anchors
    • Spacing adjustment: Increase spacing by 25–50% compared to solid concrete

    If you’re working with masonry, review (Can You Use Concrete Anchors in Brick or Block?) before drilling.

    Common Spacing Mistakes to Avoid

    One of the most common homeowner mistakes is placing anchors too close together to compensate for heavy loads. In many cases, fewer anchors installed at proper spacing will outperform multiple anchors installed too close.

    Another frequent error is assuming all anchors of the same diameter have identical spacing requirements. Manufacturer specifications vary by design and material, so always confirm requirements before drilling.

    For a broader overview of installation errors, see (Common Mistakes When Installing Concrete Anchors (And How to Avoid Them)).

    Final Takeaway

    Correct concrete anchor spacing and edge distance are just as important as choosing the right anchor. When in doubt:

    • Stay farther from edges
    • Space anchors wider
    • Use Tapcons or sleeve anchors near edges

    Following these guidelines dramatically improves safety, holding strength, and long-term reliability for DIY and home-improvement projects.

    For anchor selection, installation steps, and load guidance, cross-reference (Best Concrete Anchors for Home Use – 2026 Guide) before starting your project.

    Related Concrete Anchor Guides

    (Best Drill for Home Use – 2026 Guide)

    (How to Install Concrete Anchors Correctly – Step-by-Step Guide)

    (Concrete Anchor Selection Chart – Homeowner’s Quick Reference Guide)

    (Types of Concrete Anchors Explained (Sleeve, Wedge, Drop-In, Tapcon))

  • How to Install Concrete Anchors Correctly (Step-by-Step Guide)

    How to Install Concrete Anchors Correctly (Step-by-Step Guide)

    Installing concrete anchors correctly is critical for safety, strength, and long-term durability. Even the best anchor can fail if it’s installed improperly. This step-by-step guide explains how to install concrete anchors correctly, whether you’re mounting shelves, TVs, electrical panels, or heavy equipment.

    If you haven’t chosen an anchor yet, start with (Best Concrete Anchors for Home Use (2026 Guide)) before drilling.

    Tools and Materials You’ll Need

    Before starting, gather the following:

    • Hammer drill or rotary hammer
    • Correct masonry drill bit
    • Concrete anchors (wedge, sleeve, drop-in, or Tapcon)
    • Vacuum, compressed air, or hole-cleaning brush
    • Wrench or torque wrench
    • Safety glasses and gloves

    If you’re unsure about drill bit sizing, review (What Size Drill Bit for Concrete Anchors?) first.

    Step 1: Mark Anchor Locations Carefully

    Begin by marking your anchor locations with a pencil or marker. Make sure anchors are spaced correctly and not too close to slab edges.

    Incorrect spacing is one of the most common causes of anchor failure. Always follow spacing guidelines in (Concrete Anchor Spacing & Edge Distance Guide) before drilling.

    Step 2: Drill the Hole to the Correct Size and Depth

    Use a hammer drill with the correct masonry bit. Drill straight and perpendicular to the surface.

    Key drilling tips:

    • Drill slightly deeper than the anchor embedment length
    • Do not wobble the drill bit
    • Avoid drilling into cracked or weak concrete

    If you’re unsure whether your drill is suitable, see (Best Drill for Concrete Walls (2025 Guide)).

    Step 3: Clean the Hole Thoroughly (Critical Step)

    Hole cleaning is not optional. Dust left inside the hole prevents anchors from expanding or gripping properly.

    Clean the hole using:

    • Compressed air
    • A vacuum
    • A wire hole-cleaning brush

    Skipping this step can reduce holding power by 30–50%. This mistake is explained in (Common Concrete Anchor Mistakes (And How to Avoid Them)).

    Step 4: Insert the Anchor Correctly

    Insert the anchor according to its type:

    Wedge Anchors

    Tap the anchor into the hole until fully seated, then tighten the nut to expand the wedge.

    Sleeve Anchors

    Insert the anchor through the fixture and into the hole, then tighten gradually.

    Drop-In Anchors

    Insert the anchor flush with the surface and use a setting tool to expand it.

    Tapcon Screws

    Drive the screw directly into the pre-drilled hole without over-tightening.

    For a breakdown of anchor types, see (Types of Concrete Anchors Explained (Wedge, Sleeve, Drop-In, Tapcon)).

    Step 5: Tighten to the Correct Torque

    Over-tightening is one of the fastest ways to damage concrete or strip anchors.

    • Tighten only to manufacturer specifications
    • Use a torque wrench when possible
    • Stop immediately if the anchor spins or cracks appear

    For strength limits, refer to (How Much Weight Can Concrete Anchors Hold?).

    Step 6: Inspect the Installation

    After tightening, check for:

    • No movement or wobble
    • No visible cracks in the concrete
    • Proper seating of the anchor head

    If the anchor spins or feels loose, remove it and install a new anchor in a different location.

    Special Considerations for Brick and Block

    Concrete anchors do not behave the same way in brick or block. Installing into the wrong area can cause bricks to crumble or hollow block to fail.

    If you’re working with masonry, read (Can You Use Concrete Anchors in Brick or Block?) before installing.

    Common Installation Mistakes to Avoid

    Avoid these frequent errors:

    • Using the wrong drill bit size
    • Skipping hole cleaning
    • Installing too close to edges
    • Over-tightening anchors
    • Anchoring into cracked concrete

    Each of these mistakes can significantly reduce holding power or cause sudden failure.

    Final Installation Tips for Homeowners

    If you remember only three rules:

    1. Drill the correct hole size
    2. Clean the hole thoroughly
    3. Do not over-tighten

    Following these steps ensures your anchors perform at their rated strength and remain secure over time.

    For a quick decision overview, bookmark (Concrete Anchor Selection Chart (Homeowner’s Quick Reference Guide)).

    When to Call a Professional

    For structural loads, overhead installations, or safety-critical equipment, consider hiring a licensed professional. Incorrect anchor installation in these cases can result in serious injury or property damage.

  • Can You Use Concrete Anchors in Brick or Block? (What You Need to Know)

    Can You Use Concrete Anchors in Brick or Block? (What You Need to Know)

    Can you use concrete anchors in brick or block the same way you would in solid concrete? Many homeowners assume the answer is yes, but that assumption often leads to cracked masonry, loose fixtures, or complete anchor failure.

    While some concrete anchors can be used in masonry, brick and concrete block behave very differently than poured concrete and require more careful anchor selection.

    This guide explains when concrete anchors are safe to use in brick or block, which anchor types work best, and what mistakes to avoid so your installation remains secure and damage-free.

    Concrete vs Brick vs Concrete Block: Why Material Matters

    Before choosing any anchor, it’s important to understand how these materials differ:

    • Concrete: Dense, solid, and strong in compression
    • Brick: Brittle, may be solid or hollow, prone to cracking
    • Concrete block (CMU): Hollow cores with thinner outer walls

    Anchors rated for solid concrete may not perform safely in brick or block, especially when load forces are involved. Understanding these differences is critical before selecting anchors outlined in (Types of Concrete Anchors Explained (Wedge, Sleeve, Drop-In, Tapcon)).

    Can You Use Concrete Anchors in Brick?

    ⚠️ Sometimes — but only with caution

    Brick cracks easily under expansion pressure. Expansion-style anchors can split brick faces or damage mortar joints if the wrong anchor is used.

    Anchors that MAY work in brick:

    • Sleeve anchors (light to medium loads)
    • Masonry screws (Tapcon-style)
    • Plastic anchors (very light-duty only)

    Anchors to AVOID in brick:

    • Large wedge anchors
    • Heavy expansion anchors

    Improper anchor selection in brick is one of the most common failure causes discussed in (Common Mistakes When Installing Concrete Anchors (And How to Avoid Them)).

    Can You Use Concrete Anchors in Concrete Block?

    ⚠️ Only specific anchors work safely

    Concrete block is hollow, meaning traditional expansion anchors may expand into empty space instead of gripping solid material.

    Best anchor options for concrete block:

    • Sleeve anchors with shallow embedment
    • Masonry screws
    • Toggle or specialty hollow-wall anchors
    • Chemical anchors (for higher loads)

    Before selecting anchors, compare options using (Concrete Anchor Selection Chart (Homeowner’s Quick Reference Guide)) to ensure compatibility with hollow masonry.

    Should You Drill Into Brick or Mortar?

    This decision directly affects strength and repairability.

    Drilling into brick:

    • Stronger hold (if brick is solid)
    • Higher risk of cracking

    Drilling into mortar:

    • Easier to repair
    • Lower holding strength

    For light-duty applications, mortar may be acceptable. For heavier loads, always verify anchor capacity using (How Much Weight Can Concrete Anchors Hold?) before drilling.

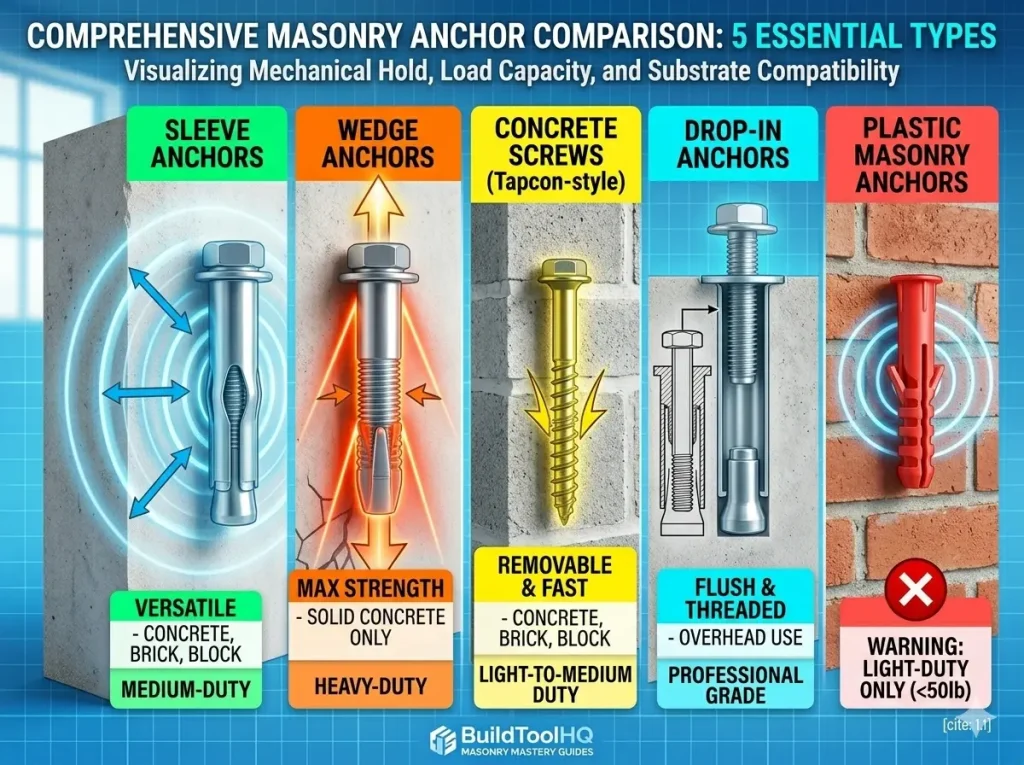

    Best Anchor Types for Masonry Applications

    Base MaterialRecommended Anchors
    Solid concreteWedge, sleeve, drop-in
    BrickSleeve anchors, masonry screws
    Concrete blockSleeve anchors, toggles, chemical anchors

    Correct installation is just as important as anchor choice. Always follow procedures outlined in (How to Install Concrete Anchors Correctly – Step-by-Step Guide).

    Installation Tips for Brick and Block

    Masonry requires a gentler approach than solid concrete.

    • Use smaller-diameter anchors
    • Drill slowly to prevent cracking
    • Avoid expansion-heavy anchors
    • Clean holes thoroughly
    • Never overtighten

    Overtightening is especially dangerous in brick and block and is covered in detail in (Common Mistakes When Installing Concrete Anchors (And How to Avoid Them)).

    Tool Selection Matters More Than You Think

    Using the wrong drill or bit increases the risk of cracking brick or damaging block. Hammer drills should be used carefully, and bit size must match the anchor exactly.

    If you’re unsure whether your drill is suitable, review (Best Drill for Concrete Walls (2025 Guide)) before starting.

    When NOT to Use Concrete Anchors in Masonry

    Do not use standard concrete anchors if:

    • Brick is cracked, spalling, or weathered
    • Block cores are thin or damaged
    • Load is structural or overhead
    • Manufacturer does not list masonry compatibility

    In these situations, professional guidance or specialty anchoring systems are strongly recommended.

    Can You Use Concrete Anchors in Brick or Block for Heavy Loads?

    For heavy loads such as wall-mounted TVs, cabinets, or overhead fixtures, using concrete anchors in brick or block requires extra caution. Masonry does not distribute expansion forces the same way solid concrete does, which is why anchor type, placement, and spacing are critical.

    Always confirm load ratings and spacing rules using (Best Concrete Anchors for Home Use – 2026 Guide) before attempting heavier installations.

    Final Thoughts

    While some concrete anchors can be used in brick or block, anchors are not interchangeable across materials. Choosing the wrong anchor can result in cracking, failure, or unsafe installations.

    Always match the anchor type to:

    • The base material
    • The load being supported
    • The installation method

    For anchor comparisons, installation steps, spacing rules, and load guidance, refer back to (How Much Weight Can Concrete Anchors Hold? (Load Ratings Explained)) before starting your project.

    Related Concrete Anchor Guides

  • Common Mistakes When Installing Concrete Anchors (And How to Avoid Them)

    Common Mistakes When Installing Concrete Anchors (And How to Avoid Them)

    Common mistakes when installing concrete anchors can dramatically reduce holding strength or cause anchor failure, even when using high-quality fasteners. In most cases, anchor problems aren’t caused by the anchor itself—but by avoidable installation errors that compromise safety and performance.

    This guide covers the most common mistakes homeowners make when installing concrete anchors and explains how to avoid them using proven best practices.

    Why Installation Mistakes Matter

    Concrete anchors rely on precise drilling, correct embedment, and proper expansion to achieve their rated strength. Even anchors selected using (Best Concrete Anchors for Home Use – 2026 Guide) can fail prematurely if installation steps are skipped or done incorrectly.

    Common consequences of installation mistakes include:

    • Reduced load capacity
    • Anchor spinning or pull-out
    • Cracked or damaged concrete
    • Unsafe overhead installations

    Mistake #1: Using the Wrong Drill Bit Size

    One of the most frequent—and damaging—errors is drilling the wrong hole diameter.

    • Oversized holes prevent proper expansion
    • Undersized holes cause binding or concrete cracking

    Always match the drill bit exactly to the anchor size, as explained in (What Size Drill Bit for Concrete Anchors?).

    ✅ How to avoid it

    Never “eyeball” drill bits. Verify the anchor diameter and use the manufacturer-specified bit.

    Mistake #2: Skipping Hole Cleaning

    Dust and debris left inside the hole reduce friction and prevent anchors from gripping properly. This mistake is especially common with expansion-style anchors.

    This issue is frequently seen with anchors outlined in (Types of Concrete Anchors Explained (Wedge, Sleeve, Drop-In, Tapcon)).

    ✅ How to avoid it

    Vacuum, blow out, or brush the hole thoroughly before inserting the anchor.

    Mistake #3: Drilling Too Shallow or Too Deep

    Incorrect hole depth directly affects anchor performance:

    • Too shallow → anchor won’t seat fully
    • Too deep → anchor may not expand as designed

    This impacts load capacity and long-term reliability.

    ✅ How to avoid it

    Drill slightly deeper than the anchor length (usually about ¼″) and keep the drill straight.

    Mistake #4: Overtightening the Anchor

    Many DIYers assume tighter is stronger—but overtightening can:

    • Strip threads
    • Crack surrounding concrete
    • Reduce holding strength

    This mistake is especially common with Tapcon screws and wedge anchors.

    ✅ How to avoid it

    Tighten until snug and stop when resistance becomes firm. Use hand tools instead of high-torque impact drivers whenever possible.

    Mistake #5: Installing Anchors Too Close to Concrete Edges

    Concrete edges are weaker and more prone to cracking. Anchors placed too close to edges increase the risk of:

    • Concrete spalling
    • Anchor pull-out

    Correct spacing is critical and often overlooked.

    ✅ How to avoid it

    Follow edge distance and spacing rules outlined in (Concrete Anchor Spacing & Edge Distance Guide).

    Mistake #6: Using the Wrong Anchor for the Load

    Not all anchors are designed to handle the same loads. For example:

    • Tapcon screws → light-duty applications
    • Sleeve anchors → medium loads
    • Wedge anchors → heavy structural loads

    Using the wrong anchor can result in failure even if installed correctly.

    ✅ How to avoid it

    Match the anchor type to the application using (Concrete Anchor Selection Chart (Homeowner’s Quick Reference Guide)) and verify load limits before installation.

    Mistake #7: Installing Anchors in Weak or Damaged Concrete

    Cracked, old, or crumbly concrete dramatically reduces anchor performance. Even properly installed anchors may fail if the base material itself is compromised.

    ✅ How to avoid it

    Inspect the surface carefully. If concrete crumbles during drilling, consider relocating the anchor or using alternative mounting methods.

    Mistake #8: Ignoring Manufacturer Instructions

    Anchor specifications vary by:

    • Brand
    • Diameter
    • Material
    • Installation method

    Relying on “experience” instead of instructions is a common cause of failure.

    ✅ How to avoid it

    Always follow manufacturer guidelines and compare them with the step-by-step process in (How to Install Concrete Anchors Correctly – Step-by-Step Guide).

    When Installation Mistakes Become Safety Hazards

    Installation errors are especially dangerous for:

    • Overhead anchors
    • Wall-mounted TVs and furniture
    • Garage storage systems
    • Structural attachments

    These applications require strict adherence to load limits and best practices.

    Final Thoughts

    Most concrete anchor failures are completely preventable. By avoiding common mistakes—wrong drill bit size, poor hole cleaning, overtightening, improper spacing, and incorrect anchor selection—you can achieve the full rated strength of your anchors and ensure long-term safety.

    For anchor selection, installation, spacing, and load guidance, refer back to (Best Concrete Anchors for Home Use – 2026 Guide).

    Related Concrete Anchor Guides

  • How Much Weight Can Concrete Anchors Hold? (Load Ratings Explained)

    How Much Weight Can Concrete Anchors Hold? (Load Ratings Explained)

    “How much weight can concrete anchors hold?” is one of the most important questions homeowners should ask before mounting shelves, TVs, cabinets, or heavy fixtures. While concrete anchors are extremely strong when installed correctly, their real load capacity depends on anchor type, size, concrete quality, and installation accuracy.

    This guide explains how concrete anchor load ratings work, what affects holding strength, and how to choose the right anchor so your installation stays safe and secure.

    Why Load Ratings Matter

    Concrete anchors are engineered to resist force in different directions. Exceeding their rated capacity can result in:

    • Anchor pull-out
    • Cracked concrete
    • Sudden fixture failure
    • Serious injury or property damage

    Even anchors selected correctly using (Best Concrete Anchors for Home Use – 2026 Guide) can fail if load limits are misunderstood or ignored.

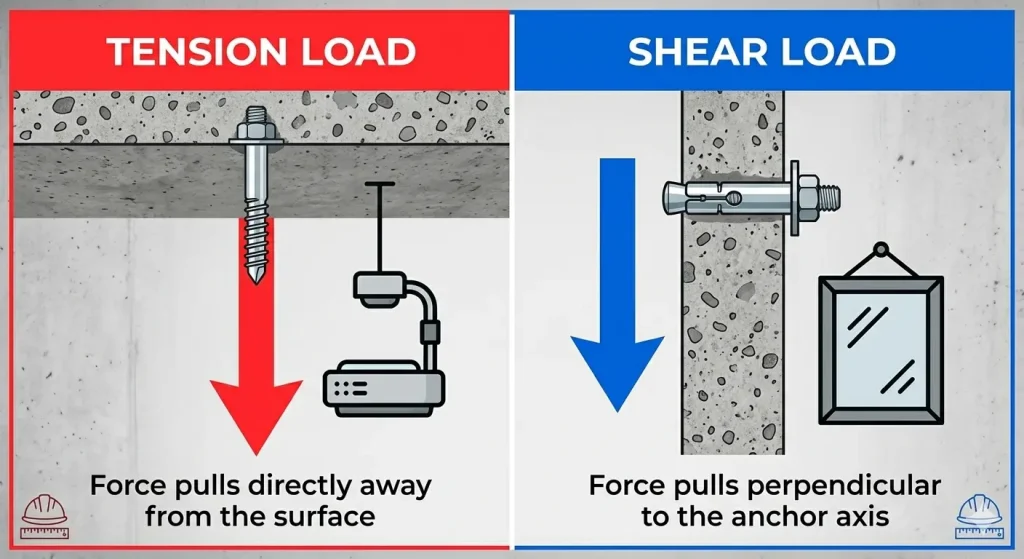

    The Two Types of Load Ratings You Must Understand

    Concrete anchors are rated for two distinct types of force.

    🔽 Shear Load

    Force applied parallel to the wall.

    Example:
    The downward weight of a TV or cabinet pulling along the wall surface.

    Shear loads are usually less dangerous because concrete resists them well.

    🔼 Tension (Pull-Out) Load

    Force applied away from the wall.

    Example:
    Shelves or brackets pulling outward from concrete.

    Most anchor failures occur due to tension load, not shear.

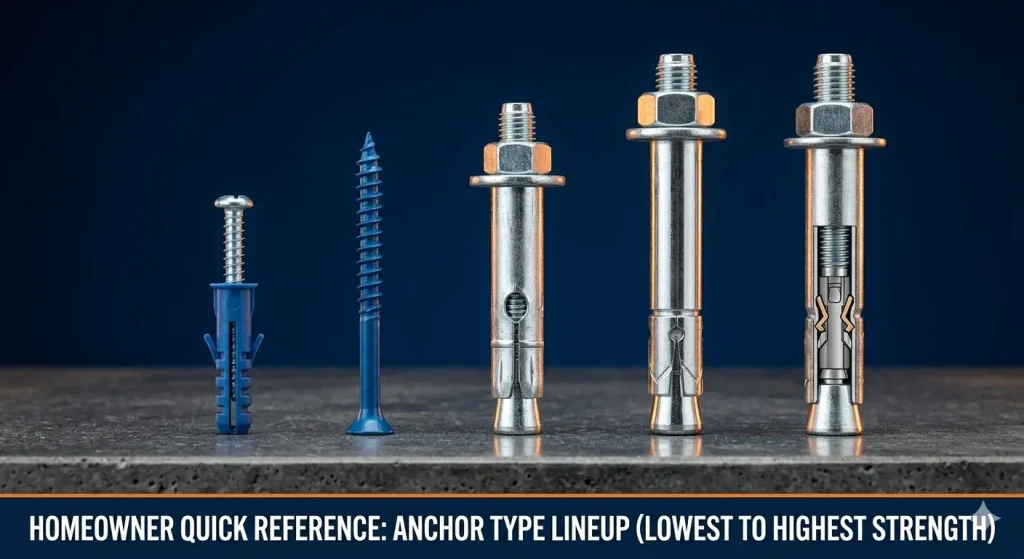

    How Much Weight Can Different Concrete Anchors Hold?

    The values below reflect typical homeowner-use ranges in solid concrete. Always verify manufacturer specifications for exact ratings.

    Wedge Anchors

    Typical load capacity:

    • 3/8″ wedge anchor: ~2,000–3,000 lbs (tension)

    Best for:

    • Structural mounts
    • Railings
    • Heavy equipment

    Important notes:

    • Concrete only (not brick or block)
    • Requires precise drilling and proper spacing

    For anchor type differences, see (Types of Concrete Anchors Explained (Wedge, Sleeve, Drop-In, Tapcon)).

    Sleeve Anchors

    Typical load capacity:

    • 3/8″ sleeve anchor: ~1,200–2,000 lbs

    Best for:

    • TV mounts
    • Shelves
    • Brick, block, and concrete

    Sleeve anchors expand more evenly, reducing cracking risk and making them safer for mixed masonry applications.

    Drop-In Anchors

    Typical load capacity:

    • 3/8″ drop-in anchor: ~1,500–2,500 lbs

    Best for:

    • Flush-mounted hardware
    • Overhead installations
    • Commercial-style projects

    Drop-in anchors require exact drilling depth and proper setting, which is covered in (How to Install Concrete Anchors Correctly – Step-by-Step Guide).

    Tapcon Screws (Concrete Screws)

    Typical load capacity:

    • 3/16″ Tapcon: ~200–300 lbs
    • 1/4″ Tapcon: ~400–600 lbs

    Best for:

    • Light to medium-duty projects
    • Removable installations
    • DIY-friendly applications

    For help choosing between fastener styles, see (Tapcon Screws vs Concrete Anchors: Which Should You Use?).

    Plastic Masonry Anchors

    Typical load capacity:

    • Usually under 100 lbs

    Best for:

    • Very light fixtures only

    Plastic anchors should never be used for TVs, shelving, overhead loads, or safety-related mounts.

    What Factors Affect Concrete Anchor Load Capacity?

    Even the strongest anchor can fail if installed incorrectly. Key factors include:

    🔧 Anchor Size

    Larger diameters generally support higher loads.

    🧱 Concrete Quality

    Cracked, weak, or deteriorated concrete drastically reduces strength.

    🕳️ Hole Size & Depth

    Incorrect bit size or shallow drilling weakens holding power.
    Always verify bit sizing using (What Size Drill Bit for Concrete Anchors?).

    🧹 Hole Cleanliness

    Dust prevents proper expansion and friction.

    🔩 Installation Technique

    • Over-tightening can crack concrete
    • Under-tightening reduces holding strength

    Common errors are explained in (Common Concrete Anchor Mistakes (And How to Avoid Them)).

    Safety Rule: Always Use a Safety Margin

    Never load an anchor to its maximum rating.

    Recommended homeowner rule:
    Use no more than 25–30% of the anchor’s rated maximum load.

    Example:

    • Anchor rated at 1,000 lbs
    • Safe working load: 250–300 lbs

    This margin accounts for:

    • Dynamic movement
    • Installation variation
    • Material imperfections

    How to Choose the Right Anchor Based on Weight

    FixtureRecommended Anchor
    Light shelvesTapcon screws
    TV mountsSleeve anchors
    Heavy cabinetsSleeve or drop-in anchors
    RailingsWedge anchors
    Temporary mountsTapcon screws

    If you want an all-in-one solution for mixed projects, see (Best Concrete Anchor Kits for Homeowners – 2026 Review).

    Drill & Bit Selection Still Matters

    Correct drilling directly affects load capacity. Always use:

    • Carbide-tipped masonry bits
    • Hammer drill mode
    • Exact bit sizes

    If you’re unsure your drill is appropriate, review (Best Drill for Concrete Walls (2025 Guide)) or (Best Drill for Home Use (2026 Guide)) before starting.

    Final Thoughts: Don’t Guess Load Ratings

    Concrete anchors are incredibly strong — when used correctly.

    Always:

    • Choose the right anchor type
    • Drill accurately
    • Respect load ratings
    • Build in a safety margin

    For anchor selection from start to finish, return to (Best Concrete Anchors for Home Use – 2026 Guide).

    Related Concrete Anchor Guides

  • What Size Drill Bit for Concrete Anchors should you use?

    What Size Drill Bit for Concrete Anchors should you use?

    What size drill bit for concrete anchors you use directly affects holding strength, safety, and whether the anchor installs correctly in concrete, brick, or block. Even a high-quality anchor will fail if the hole is too large, too small, or drilled incorrectly.

    In this guide, you’ll learn what size drill bit to use for concrete anchors, how bit size varies by anchor type, and how to avoid common drilling mistakes that weaken holding strength.

    Why Drill Bit Size Matters for Concrete Anchors

    Concrete anchors rely on precise hole dimensions to grip properly.
    If the hole is oversized, the anchor won’t expand or bite correctly.
    If the hole is undersized, the anchor may not seat fully — or worse, crack the concrete.

    If you’re still choosing which anchor to use, start with (Best Concrete Anchors for Home Use – 2026 Guide) before drilling.

    General Rule: Drill Bit Size = Anchor Diameter

    For most concrete anchors, the rule is simple:

    The drill bit size should match the anchor diameter exactly.

    Examples:

    • 3/8″ anchor → 3/8″ masonry bit
    • 1/2″ anchor → 1/2″ masonry bit

    This applies to most expansion anchors and drop-in anchors.

    Drill Bit Size by Anchor Type

    Different anchor types have slightly different requirements. Here’s how they break down.

    Sleeve Anchors

    Drill bit size: Same diameter as the anchor
    Example:

    • 3/8″ sleeve anchor → 3/8″ masonry bit

    Sleeve anchors rely on even expansion along the sleeve, so hole accuracy is critical.

    Sleeve anchors are commonly discussed in (Types of Concrete Anchors Explained – Sleeve, Wedge, Drop-In, Tapcon).

    Wedge Anchors

    Drill bit size: Same diameter as the anchor
    Hole depth: Slightly deeper than anchor length

    Wedge anchors expand aggressively at the base, so:

    • Hole must be straight
    • Dust must be cleared
    • Depth must allow full expansion

    Incorrect drilling is a common issue covered in (Common Concrete Anchor Installation Mistakes – And How to Avoid Them).

    Drop-In Anchors

    Drill bit size: Exact anchor diameter
    Special note: Requires a setting tool

    Drop-in anchors sit flush with the surface and depend on internal expansion, making precise hole size non-negotiable.

    These anchors are often used for heavier loads discussed in (How Much Weight Can Concrete Anchors Hold? – Load Ratings Explained).

    Tapcon Screws (Concrete Screws)

    Tapcon screws are different.

    Drill bit size:

    • Determined by the screw size, not the head size
    • Always follow manufacturer specs

    Common examples:

    • 3/16″ Tapcon → 5/32″ masonry bit
    • 1/4″ Tapcon → 3/16″ masonry bit

    This difference is why Tapcons are often misinstalled. For a full comparison, see (Tapcon Screws vs Concrete Anchors: Which Should You Use?).

    Plastic Masonry Anchors

    Drill bit size: Matches anchor body diameter

    Plastic anchors are forgiving but not strong, and they should only be used for lightweight projects.

    For anchor selection by surface, see (Best Anchors for Brick vs Concrete vs Block Walls).

    How Deep Should You Drill?

    As a rule:

    • Drill at least 1/4″ deeper than the anchor length
    • This allows space for dust and full expansion

    Failing to drill deep enough is one of the most common DIY mistakes.

    Drill Bit Type Matters Too

    Always use:

    • Carbide-tipped masonry bits
    • Sharp bits only
    • Hammer drill mode for concrete

    Recommended guides:

    Step-by-Step: Drilling the Perfect Anchor Hole

    1. Mark the hole location
    2. Select the correct masonry bit
    3. Drill straight at a steady speed
    4. Drill slightly deeper than anchor length
    5. Clear dust with air or vacuum
    6. Insert anchor or screw

    For a full walkthrough, see (How to Drill Into Concrete Safely – Step-by-Step Guide).

    Common Drill Bit Size Mistakes to Avoid

    Avoid these errors:

    • Guessing bit size instead of measuring
    • Using worn or dull bits
    • Skipping dust removal
    • Using wood or metal bits on concrete

    These mistakes reduce holding strength and are often blamed on the anchor itself.

    Final Recommendation

    If you remember only one thing:

    Use the exact drill bit size recommended for your anchor type — every time.

    Correct drilling improves:

    • Holding power
    • Safety
    • Long-term durability

    For choosing the right fastener overall, return to (Best Concrete Anchors for Home Use – 2026 Guide).

    Continue Learning

    Next guides :

  • Tapcon Screws vs Concrete Anchors: Which Should You Use?

    Tapcon Screws vs Concrete Anchors: Which Should You Use?

    When fastening into concrete, brick, or block, homeowners often face the same question: should you use Tapcon concrete screws or traditional concrete anchors?
    Both options are effective — but they serve very different purposes, and choosing the wrong one can lead to weak mounts or damaged masonry.

    This guide breaks down Tapcon screws vs concrete anchors, explaining when each option is best for home use.

    What Are Tapcon Screws?

    Tapcon screws (also called concrete screws) are hardened fasteners designed to cut threads directly into concrete or masonry. Unlike expansion anchors, Tapcons rely on thread engagement, not outward pressure, to hold in place.

    Tapcon screws are commonly used for:

    • Shelves
    • Light fixtures
    • Electrical boxes
    • Temporary or adjustable mounts

    For a broader overview of fastener options, see (Types of Concrete Anchors Explained – Sleeve, Wedge, Drop-In, Tapcon).

    What Are Concrete Anchors?

    Concrete anchors include expansion and mechanical fasteners such as:

    • Sleeve anchors
    • Wedge anchors
    • Drop-in anchors

    These anchors hold by expanding inside the drilled hole, creating strong outward pressure against the concrete.

    If you’re comparing all anchor options first, start with (Best Concrete Anchors for Home Use – 2026 Guide).

    Tapcon Screws vs Concrete Anchors: Key Differences

    🔩 Installation Method

    • Tapcon screws thread directly into the hole
    • Concrete anchors expand inside the hole when tightened

    Tapcons are generally faster to install, especially for DIYers.

    🧱 Load Capacity

    • Tapcon screws: light to medium loads
    • Concrete anchors: medium to heavy loads

    For exact weight limits, see (How Much Weight Can Concrete Anchors Hold? – Load Ratings Explained).

    🔧 Removability

    • Tapcon screws: removable and reusable (in some cases)
    • Concrete anchors: usually permanent

    If you expect to reposition or remove fixtures later, Tapcons have a clear advantage.

    🛠️ Tools Required

    • Tapcon screws: drill + masonry bit
    • Concrete anchors: drill + masonry bit + wrench or setting tool

    Correct drilling technique matters — review (How to Drill Into Concrete Safely – Step-by-Step Guide) if you’re unsure.

    When to Use Tapcon Screws

    Tapcon screws are best when:

    • Loads are light to medium
    • You want fast installation
    • The mount may need removal later
    • You’re working in brick or block and want minimal expansion stress

    Common Tapcon projects:

    • Mounting shelves
    • Attaching furring strips
    • Installing conduit or brackets

    Make sure your bit size is exact — see (What Size Drill Bit Should You Use for Concrete Anchors?) (Tapcons are very size-sensitive).

    When to Use Concrete Anchors

    Traditional concrete anchors are better when:

    • Loads are heavy
    • Safety is critical (TVs, handrails)
    • Long-term, permanent mounting is required
    • You’re anchoring into solid concrete

    Concrete anchors are commonly recommended for:

    • TV mounts
    • Structural brackets
    • Railings
    • Heavy cabinets

    If you’re mounting into different masonry types, read (Best Anchors for Brick vs Concrete vs Block Walls).

    Tapcon Screws vs Concrete Anchors: Quick Comparison

    FeatureTapcon ScrewsConcrete Anchors
    Load capacityLight–MediumMedium–Heavy
    InstallationEasyModerate
    RemovableYesUsually no
    Expansion stressNoneYes
    Best forDIY projectsHeavy fixtures

    Common Mistakes to Avoid

    Avoid these frequent errors:

    • Using Tapcons for heavy loads
    • Over-tightening Tapcon screws
    • Using expansion anchors in weak brick
    • Drilling incorrect hole sizes

    These issues are covered in detail in (Common Concrete Anchor Installation Mistakes – And How to Avoid Them).

    Best Drill & Bits for Both Options

    Regardless of fastener choice:

    • Use carbide-tipped masonry bits
    • Drill straight and clean out dust
    • Avoid oversized holes

    Recommended guides:

    Final Verdict: Which One Should You Choose?

    Choose Tapcon screws if:

    • You’re mounting lighter items
    • You want easy installation
    • You may remove the fastener later

    Choose concrete anchors if:

    • Loads are heavy
    • Safety matters
    • You want maximum holding power

    For mixed DIY projects, anchor kits can be useful — see (Best Concrete Anchor Kits for Homeowners – 2026 Review).

    Continue Learning

    Next, explore:

    These guides will help you fasten into concrete safely and confidently.

  • Types of Concrete Anchors Explained (Sleeve, Wedge, Drop-In, Tapcon)

    Types of Concrete Anchors Explained (Sleeve, Wedge, Drop-In, Tapcon)

    Types of concrete anchors vary by design, strength, and application, and choosing the right one is essential for safe and secure installations in concrete, brick, and block walls. Each anchor type is designed to work in specific materials and load conditions, and using the wrong one can lead to cracked masonry, loose fixtures, or dangerous failures.

    In this guide, we’ll clearly explain the different types of concrete anchors, how they work, and when homeowners should use each one.

    What Are Concrete Anchors?

    Concrete anchors are fasteners designed to secure objects into solid masonry such as concrete, brick, or concrete block. They rely on expansion, threading, or mechanical locking to hold firmly inside drilled holes.

    If you’re new to anchors or deciding what to buy, start with (Best Concrete Anchors for Home Use – 2026 Guide) to understand which types are best for typical household projects.

    The Main Types of Concrete Anchors

    Below are the most common anchor types homeowners will encounter.

    Sleeve Anchors

    Best for: Brick, block, and concrete
    Load rating: Medium to heavy

    Sleeve anchors use a metal sleeve that expands evenly against the walls of the drilled hole when tightened. This even expansion makes them ideal for brick and block, where aggressive expansion could cause cracking.

    Pros:

    • Works in multiple masonry materials
    • Even expansion reduces cracking risk
    • Good for TV mounts, railings, shelves

    Cons:

    • Not removable once installed
    • Requires precise hole depth

    Sleeve anchors are commonly recommended for home installations covered in (Best Anchors for Brick vs Concrete vs Block Walls).

    Wedge Anchors

    Best for: Solid concrete only
    Load rating: Heavy-duty

    Wedge anchors expand aggressively at the base of the anchor when tightened, creating an extremely strong hold. They are commonly used for structural applications.

    Pros:

    • Extremely strong
    • Ideal for heavy loads

    Cons:

    • Concrete only (not brick or block)
    • Permanent installation

    Using wedge anchors incorrectly is one of the issues discussed in (Common Concrete Anchor Installation Mistakes – And How to Avoid Them).

    Drop-In Anchors

    Best for: Flush-mounted applications in concrete
    Load rating: Heavy-duty

    Drop-in anchors sit flush with the surface of the concrete and require a setting tool to expand them internally.

    Pros:

    • Clean, flush finish
    • High load capacity
    • Professional-grade

    Cons:

    • Requires special setting tool
    • Concrete only

    Drop-in anchors are commonly used in commercial settings but can be useful for advanced DIYers installing heavy fixtures.

    Concrete Screws (Tapcon-Style)

    Best for: Light to medium-duty home projects
    Load rating: Light to medium

    Concrete screws thread directly into concrete or masonry without expansion. They are popular because they’re easy to install and removable.

    Pros:

    • Easy installation
    • Removable
    • No expansion stress

    Cons:

    • Lower load capacity
    • Requires precise drilling

    If you’re deciding between screws and anchors, see (Tapcon Screws vs Concrete Anchors: Which Should You Use?).

    Plastic Masonry Anchors

    Best for: Very light-duty projects
    Load rating: Light

    Plastic anchors expand when a screw is driven in. They are best suited for lightweight fixtures.

    Pros:

    • Inexpensive
    • Easy to install

    Cons:

    • Limited strength
    • Not suitable for heavy loads

    For weight considerations, review (How Much Weight Can Concrete Anchors Hold? – Load Ratings Explained).

    Choosing the Right Anchor for Your Project

    Here’s a quick homeowner decision guide:

    • Shelves & light fixtures → Concrete screws
    • TV mounts → Sleeve anchors
    • Structural loads → Wedge anchors
    • Flush installations → Drop-in anchors
    • Lightweight items → Plastic anchors

    Before drilling, make sure your bit size is correct — see (What Size Drill Bit Should You Use for Concrete Anchors?).

    Drill Bits and Hole Preparation Matter

    No anchor will hold properly without a clean, correctly sized hole.

    Best practices:

    • Use carbide-tipped masonry bits
    • Drill straight and to full depth
    • Clean dust from the hole

    For recommended tools, read (Best Drill Bits for Concrete and Masonry) and (Best Drill for Concrete Walls – 2025 Guide).

    Common Mistakes When Choosing Anchor Types

    Avoid these errors:

    • Using wedge anchors in brick
    • Undersizing or oversizing holes
    • Choosing anchors based only on price
    • Ignoring load ratings

    These mistakes are covered in detail in (Common Concrete Anchor Installation Mistakes – And How to Avoid Them).

    Final Thoughts: Which Anchor Type Is Best?

    There’s no single “best” anchor — only the right anchor for the job.

    For most homeowners:

    • Concrete screws handle small projects
    • Sleeve anchors cover most medium-duty needs
    • Wedge anchors are reserved for heavy loads

    For a full buying overview, return to (Best Concrete Anchors for Home Use – 2026 Guide).

    Continue Learning

    Next, you may want to explore:

    These guides will help you choose and install anchors safely and correctly.

  • Best Concrete Anchors for Home Use (2026 Guide)

    Best Concrete Anchors for Home Use (2026 Guide)

    Best concrete anchors for home use are essential when mounting shelves, TVs, cabinets, and heavy fixtures into concrete, brick, or block walls. Choosing the wrong anchor can lead to loose mounts, cracked masonry, or unsafe installations — which is why selecting the right anchor type matters for every home project.

    In this guide, you’ll learn which concrete anchors are best for home use, how to choose the right type for your project, and how they connect with proper drilling techniques covered in our other guides.

    What Are Concrete Anchors?

    Concrete anchors are fasteners designed to secure objects into hard masonry surfaces such as concrete, brick, or concrete block. Unlike wood screws or drywall anchors, concrete anchors expand, grip, or thread directly into masonry to create a strong mechanical hold.

    Before choosing an anchor, it’s important to understand:

    • The type of wall (solid concrete, brick, block)
    • The weight of the item
    • The hole size and depth required

    If you’re not sure how drilling affects anchor strength, start with How Deep Can You Drill Into Concrete? and How to Drill Into Concrete Safely – Step-by-Step Guide

    Types of Concrete Anchors (Quick Overview)

    There are several common anchor types used by homeowners. Each has a specific use case.

    For a full breakdown, see (Types of Concrete Anchors Explained – Sleeve, Wedge, Drop-In, Tapcon).

    Common anchor types:

    • Sleeve anchors – versatile, good for brick and block
    • Wedge anchors – extremely strong, concrete only
    • Drop-in anchors – flush-mounted, professional-grade
    • Concrete screws (Tapcon-style) – removable and easy to install
    • Plastic masonry anchors – light-duty only

    Best Concrete Anchors for Common Home Projects

    🧱 Best for Shelves & Light Fixtures

    Concrete screws (Tapcon-style)

    • Easy installation
    • Removable
    • Ideal for shelves, towel bars, small cabinets

    Make sure your hole size is correct — see (What Size Drill Bit Should You Use for Concrete Anchors?).

    📺 Best for TV Mounts & Heavy Wall Loads

    Sleeve anchors or wedge anchors

    • High load capacity
    • Strong expansion grip

    If you’re comparing tools, (Hammer Drill vs Regular Drill: Which One Do You Need?) explains why hammer drills are often required for these anchors.

    🧰 Best for Brick or Block Walls

    Sleeve anchors

    • Even expansion prevents cracking
    • Works well in hollow materials

    Avoid wedge anchors in brick — this mistake is covered in (Common Mistakes When Drilling Into Concrete – And How to Avoid Them).

    🔩 Best for DIY Homeowners

    Concrete anchor kits

    • Multiple sizes included
    • Ideal for mixed projects

    We review the best options in (Best Concrete Anchor Kits for Homeowners – 2026 Review).

    How Much Weight Can Concrete Anchors Hold?

    Anchor strength depends on:

    • Anchor type
    • Diameter and embedment depth
    • Concrete quality
    • Installation accuracy

    For real-world numbers and safety margins, read (How Much Weight Can Concrete Anchors Hold? – Load Ratings Explained).

    ⚠️ Tip: Always derate manufacturer ratings by 25–30% for home projects.

    Concrete Anchors vs Wall Plugs

    Many homeowners confuse concrete anchors with plastic wall plugs.

    Here’s the rule:

    • Wall plugs → light-duty, masonry or brick
    • Concrete anchors → medium to heavy-duty loads

    We break this down clearly in (Types of Concrete Anchors Explained (Sleeve, Wedge, Drop-In, Tapcon).

    Drill Bits Matter More Than You Think

    The anchor is only as strong as the hole it’s installed in.

    Always use:

    • Carbide-tipped masonry bits
    • Correct diameter (never oversize)
    • Clean holes (dust reduces grip)

    If you’re unsure which bit to buy, see (Best Drill Bits for Concrete and Masonry).

    How to Install Concrete Anchors Correctly (Summary)

    Correct installation prevents anchor failure.

    Basic steps:

    1. Mark and level
    2. Drill to correct depth
    3. Clean out dust
    4. Insert anchor
    5. Tighten gradually

    For a full walkthrough, follow (How to Install Concrete Anchors Correctly – Step-by-Step Guide).

    Common Concrete Anchor Mistakes to Avoid

    Avoid these frequent errors:

    • Using the wrong anchor type
    • Drilling too shallow or too deep
    • Overtightening
    • Installing anchors too close to edges

    We cover these in detail in (Common Concrete Anchor Installation Mistakes – And How to Avoid Them).

    Best Tools for Installing Concrete Anchors

    For most home projects:

    • Hammer drill for concrete
    • Standard drill for light masonry
    • Cordless drills for small anchors

    Compare your options in:

    Final Recommendation: Which Concrete Anchor Should You Choose?

    Quick decision guide:

    • Shelves / fixtures → Concrete screws
    • TV mounts → Sleeve anchors
    • Structural loads → Wedge anchors
    • Mixed DIY jobs → Anchor kits

    If you’re still deciding between fastening methods, see (Tapcon Screws vs Concrete Anchors: Which Should You Use?).

    Next Steps

    Now that you understand concrete anchors, continue with:

    These guides will ensure your installations are safe, strong, and long-lasting.
