Concrete Anchor Failure: 8 Reasons Anchors Pull Out (And How to Prevent It)

Concrete anchor failure is more common than most contractors expect — and almost always preventable. Understanding why anchors fail tells you exactly what to check before, during, and after installation. Here are the 8 most common failure modes and how to prevent each one.

The 8 Most Common Anchor Failure Modes

1. Steel Failure (Bolt Breakage)

What it looks like: The anchor bolt snaps, leaving the sleeve or expansion mechanism behind in the concrete.

Why it happens: Applied load exceeds the steel tensile or shear capacity of the bolt. Common when undersized anchors are used for the actual load, or when impact loads (vibration, shock) are applied to anchors rated for static loads only.

Prevention: Size anchors using actual calculated loads with a minimum 4:1 safety factor for non-structural applications. Use our Anchor Load Calculator to verify capacity. Never use anchors rated for static loads in vibration applications without consulting the manufacturer's dynamic load ratings.

2. Concrete Breakout (Cone Failure)

What it looks like: A cone-shaped chunk of concrete pulls out with the anchor. The failure surface is typically 1.5x the embedment depth in diameter.

Why it happens: Applied tension load exceeds the concrete's ability to hold the anchor. Most common with shallow embedment, close anchor spacing, close edge distance, or low-strength concrete.

Prevention: Increase embedment depth — doubling embedment depth more than doubles breakout resistance. Maintain minimum edge distances (5-6 anchor diameters for mechanical anchors). Never install anchors in concrete below 2,500 psi. Space multiple anchors at least 6 anchor diameters apart to avoid group reduction effects.

3. Pullout Failure

What it looks like: The anchor pulls out of the hole without taking concrete with it. The hole remains intact but enlarged.

Why it happens: For expansion anchors — undersized hole (expansion mechanism couldn't fully engage), oversized hole (no concrete to grip), or insufficient torque during installation. For epoxy anchors — inadequate hole cleaning, incorrect adhesive mixing, or loading before full cure.

Prevention: Match bit size exactly to the anchor specification. Torque expansion anchors to the manufacturer's specification using a torque wrench. For epoxy anchors, clean holes three times (blow, brush, blow) and respect cure time completely.

4. Side-Face Blowout

What it looks like: A wedge of concrete breaks off the side of a concrete member, taking the anchor with it.

Why it happens: Anchor installed too close to a free edge. Expansion forces split the concrete between the anchor and the edge.

Prevention: Maintain minimum edge distance. For wedge anchors, minimum edge distance is typically 5-6 anchor diameters. Never install expansion anchors in concrete thinner than 1.5x the embedment depth. Use epoxy anchors when edge distances are constrained — they create no expansion forces.

5. Splitting Failure

What it looks like: The concrete member cracks or splits, often along the line of multiple anchors.

Why it happens: Multiple anchors installed too close together, or anchors installed in thin concrete members. The combined expansion forces exceed the tensile strength of the concrete.

Prevention: Minimum anchor spacing is 6 anchor diameters for most expansion anchors. In thin concrete (slabs under 4"), use anchors with shallow embedment requirements or Tapcon screws which create no expansion forces.

6. Anchor Not Fully Engaged (Installation Error)

What it looks like: Anchor pulls out at a fraction of its rated load with no concrete damage.

Why it happens: Hole not drilled deep enough, hole full of dust preventing full seating, or anchor not driven to full embedment. The expansion mechanism never properly engaged the concrete.

Prevention: Drill 1/4" deeper than minimum embedment. Blow out all dust before insertion. Verify anchor is fully seated before applying torque. For Tapcon screws, drive until snug — if resistance increases dramatically before full embedment, the hole may be too short.

7. Wrong Anchor for Substrate

What it looks like: Anchor pulls out easily with minimal force. Often the concrete crumbles around the hole.

Why it happens: Expansion anchor installed in hollow CMU block (nothing to expand against), or in deteriorated concrete that cannot develop bearing.

Prevention: Always identify the substrate before selecting an anchor. Wedge anchors require solid concrete. For hollow block, use toggle bolts or epoxy anchors. Test the concrete by drilling — if it crumbles easily or feels soft, consult a structural engineer before proceeding.

8. Corrosion Failure

What it looks like: Anchor appears intact but has drastically reduced capacity due to rust. Often not visible until the anchor fails.

Why it happens: Standard carbon steel anchors used in outdoor, marine, or chemically aggressive environments. ACQ pressure-treated lumber in contact with standard zinc-plated anchors accelerates corrosion dramatically.

Prevention: Use hot-dipped galvanized (HDG) or stainless steel anchors for outdoor and treated lumber applications. In marine or coastal environments, use Type 316 stainless steel. Never use electroplated zinc anchors outdoors or with ACQ-treated lumber.

Anchor Failure Prevention Checklist

Check	What to Verify
Anchor size	Calculated for actual load with 4:1 safety factor
Drill bit size	Matches manufacturer specification exactly
Hole depth	Minimum embedment + 1/4" dust reservoir
Hole cleanliness	Blown clean with compressed air
Edge distance	Minimum 5-6 anchor diameters from any edge
Anchor spacing	Minimum 6 anchor diameters between anchors
Substrate	Solid concrete for expansion anchors — no hollow CMU
Corrosion rating	HDG or stainless for outdoor and treated lumber
Installation torque	Torque wrench to manufacturer specification

Related Guides

• Anchor Spacing and Edge Distance — ACI 318-19 minimum requirements
• How Much Weight Can Concrete Anchors Hold? — Load capacity by anchor type
• Common Anchor Installation Mistakes — What to avoid

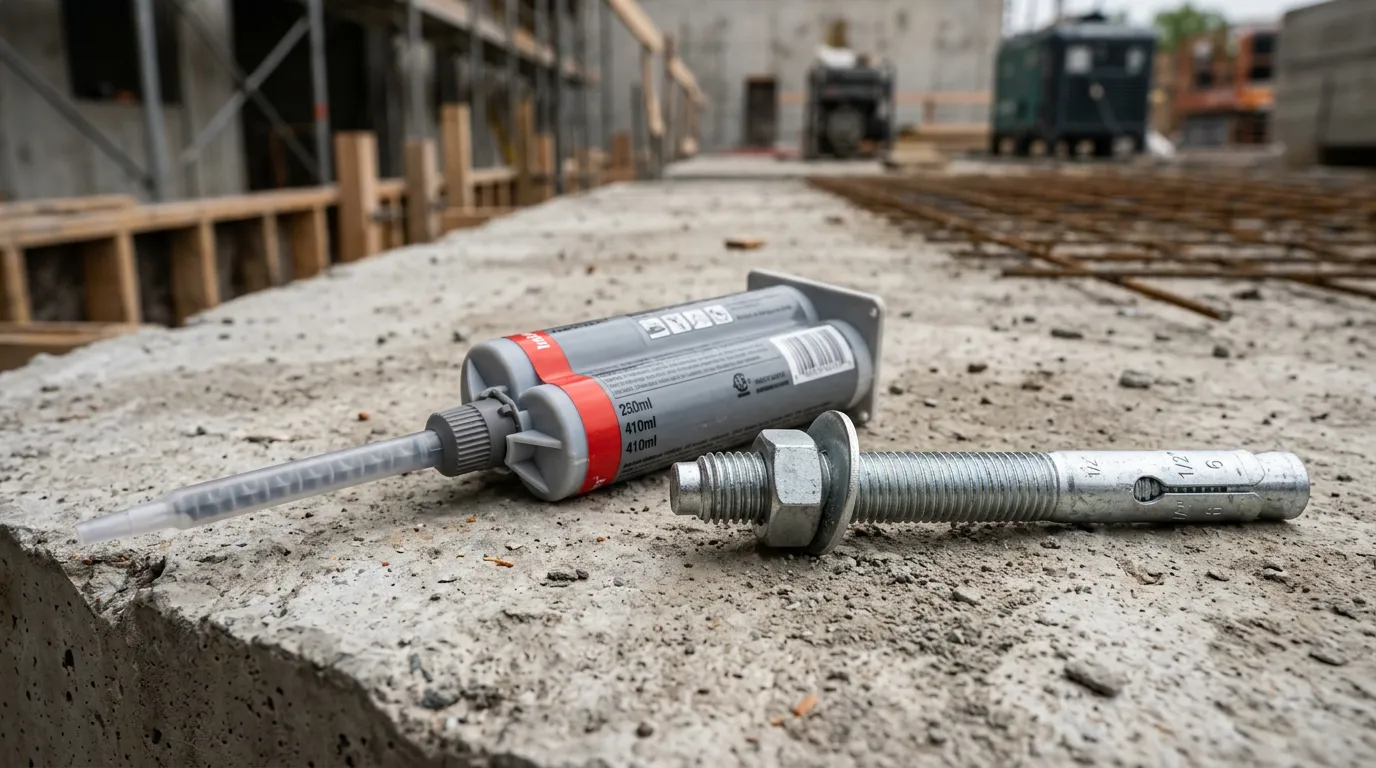

• Epoxy vs Mechanical Anchors — When to use each
• Anchor Load Calculator — Verify capacity per ACI 318-19
• Anchor Specification Engine — Get the right anchor for your project

Frequently Asked Questions

How do I know if a concrete anchor is going to fail?

Warning signs before failure: anchor feels loose when wiggled, concrete around the hole is cracked or spalled, anchor spins freely when torquing, or visible rust on the bolt shaft. If an anchor shows any of these signs, remove or replace it before applying load. Never rely on a compromised anchor for safety-critical applications.

What causes concrete anchors to pull out?

The most common causes are: hole not cleaned before installation (dust prevents expansion engagement), wrong hole diameter (too large or too small), insufficient embedment depth, anchor installed in hollow or deteriorated concrete, or applied load exceeding the anchor's capacity. See the full failure mode list above for prevention steps.

Can I re-anchor in the same hole after failure?

For pullout failures without concrete damage: use an epoxy anchor with a threaded rod in the existing hole — the adhesive fills the enlarged hole and bonds to the concrete. For cone breakout failures: do not reuse the area — move at least 3 anchor diameters away and use a larger anchor with more embedment. Always consult a structural engineer for structural anchor failures.
