Tapcon Screw Sizing Guide (All Diameters)
Concrete screws — almost always called "Tapcons" after the original ITW brand — are the most common fastener for attaching brackets, ledgers, shelving, and light fixtures to concrete, brick, and block. They're fast to install, don't require a separate anchor body, and hold surprisingly well for their size. But unlike a wood screw, a Tapcon's holding power comes entirely from the threads cutting into the masonry — get the pilot hole, embedment, or length wrong and the screw either spins uselessly or shears off mid-install.
This guide covers every standard Tapcon diameter, the exact pilot hole size for each, how to pick the right length, and the torque and installation details that determine whether the connection actually holds. For a broader look at how Tapcons compare to other concrete fastener types, see our guide on types of concrete fasteners.

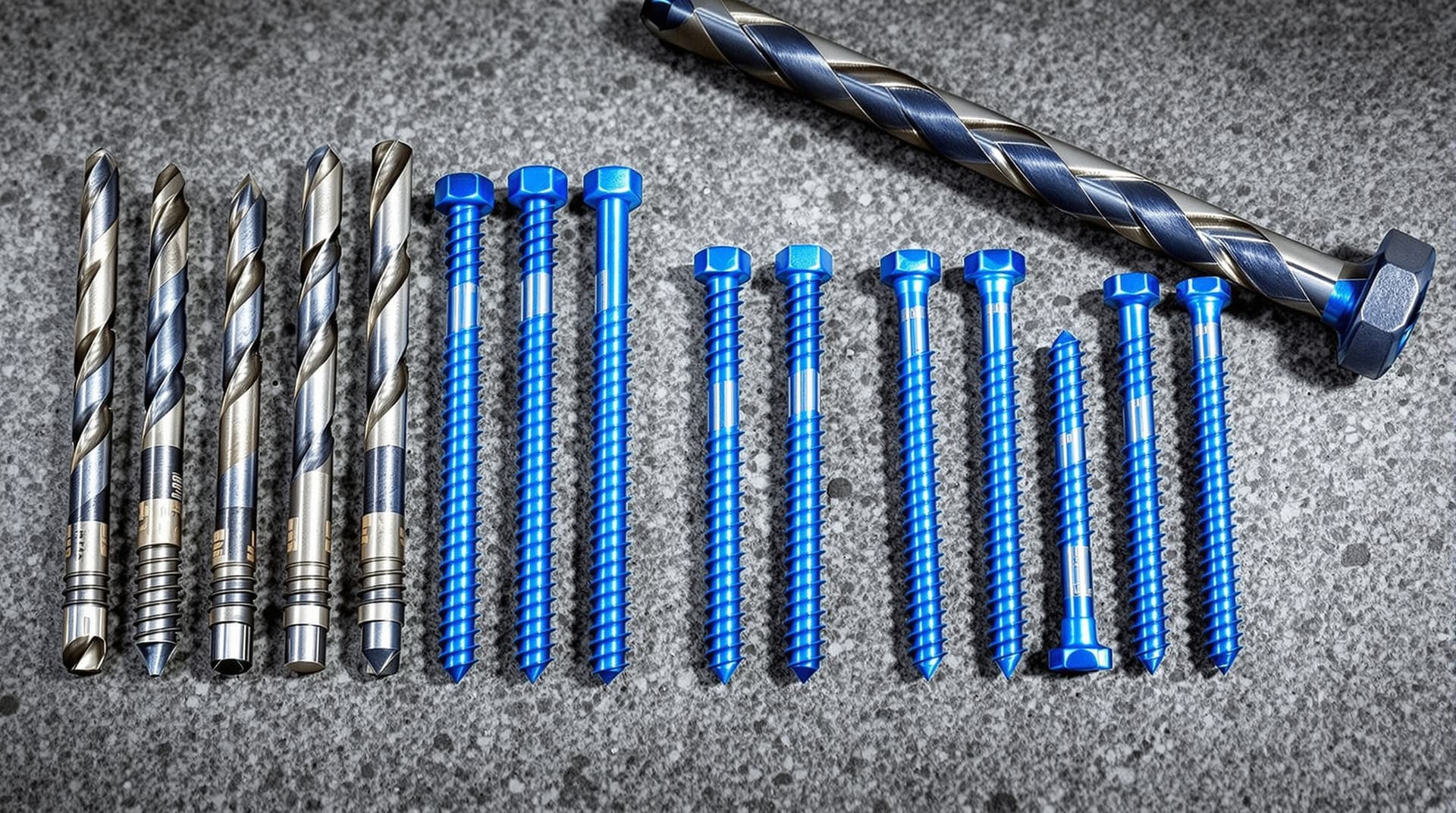

Tapcon Diameters and Pilot Hole Sizes
Tapcons are self-tapping — the hole must be deliberately undersized relative to the screw's outer diameter so the threads have solid masonry to bite into. Drill the hole at the screw's nominal diameter and the threads have nothing to grip; drill it too small and the screw will shear or snap off before it's fully driven.
| Tapcon Diameter | Pilot Hole (Masonry Bit) | Typical Use |
|---|---|---|
| 3/16" | 5/32" | Light brackets, conduit straps, trim, electrical boxes |
| 1/4" | 3/16" | General-purpose fastening — shelving, fixtures, sill plates, furring strips |
| 3/8" (Large Diameter) | 5/16" | Heavier brackets, ledger-adjacent connections, equipment mounts |
| 1/2" (Large Diameter) | 3/8" | Heavy equipment, structural-adjacent fastening (verify with an engineer for load-bearing use) |
Always use a carbide-tipped masonry bit, not a standard twist bit — a standard bit will dull within seconds in concrete and produce an oversized, out-of-round hole that won't hold the screw's threads. See our guide to the best masonry drill bits for recommendations by material.

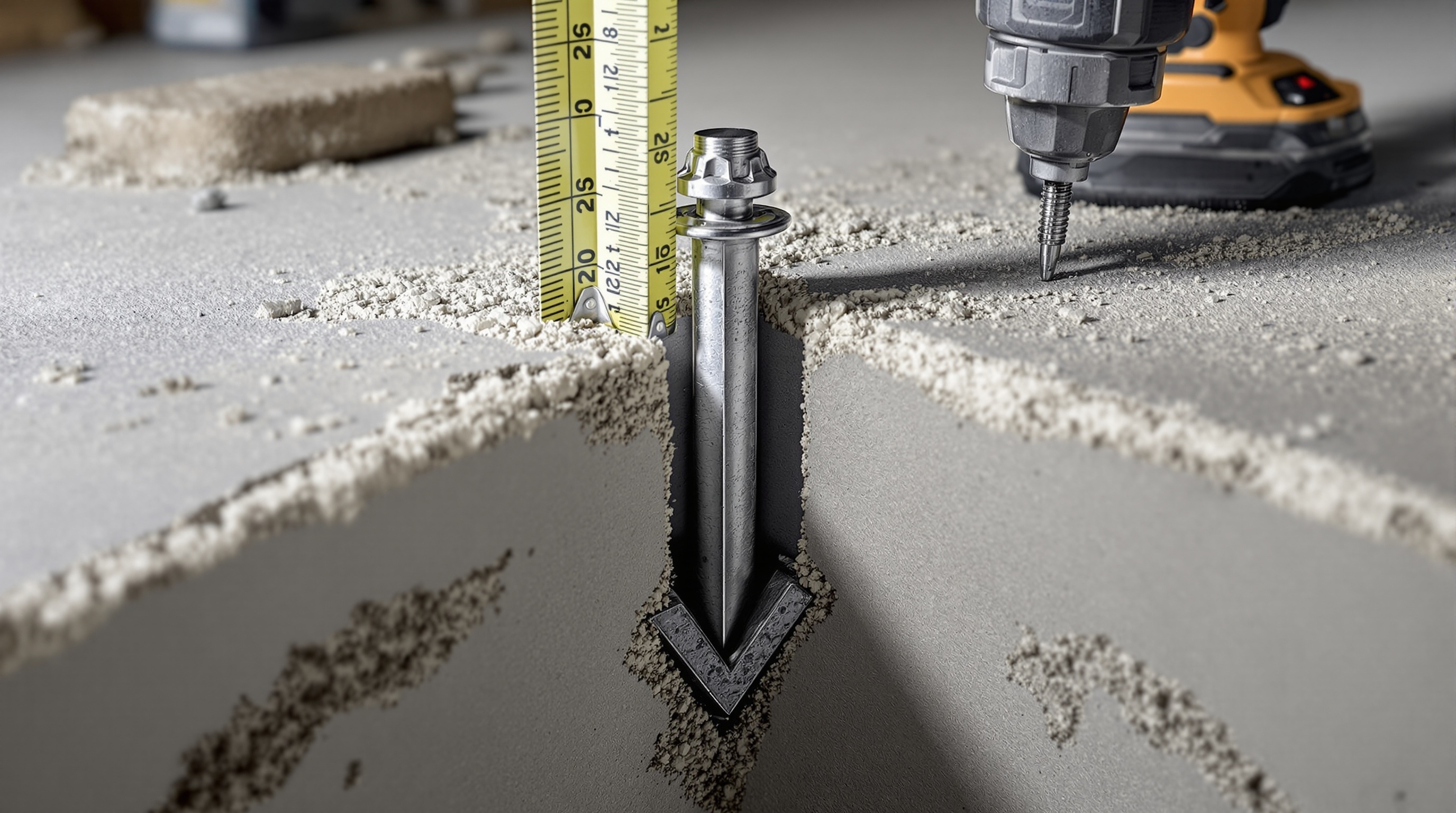

Choosing the Right Length
Tapcon length is the total length of the screw, including the portion that passes through whatever you're fastening before it enters the masonry. Get this wrong in either direction and the connection fails — too short and there's not enough embedment to hold load; too long and the screw bottoms out in the hole before the head seats, leaving the bracket loose.
The formula is straightforward:
- Screw length = thickness of the material being fastened + minimum embedment depth
- Minimum embedment into solid concrete or the solid face of brick/block is 1 inch for light-duty use, and 1-3/4 inches for anything carrying meaningful load (shelving brackets, equipment mounts, sill plates).
- For hollow block (CMU), only drill into the solid face shells — never into the hollow cores. If your bracket pattern lands over a core, shift the hole or switch to a hollow-wall anchor like a toggle bolt instead.
Standard Tapcon lengths run 1-1/4", 1-3/4", 2-1/4", 2-3/4", 3", 3-1/4", 3-3/4", and 4" for the 3/16" and 1/4" diameters, with Large Diameter Tapcons available up to 6" and 8". If your calculated length falls between standard sizes, round up — never round down to save embedment depth.

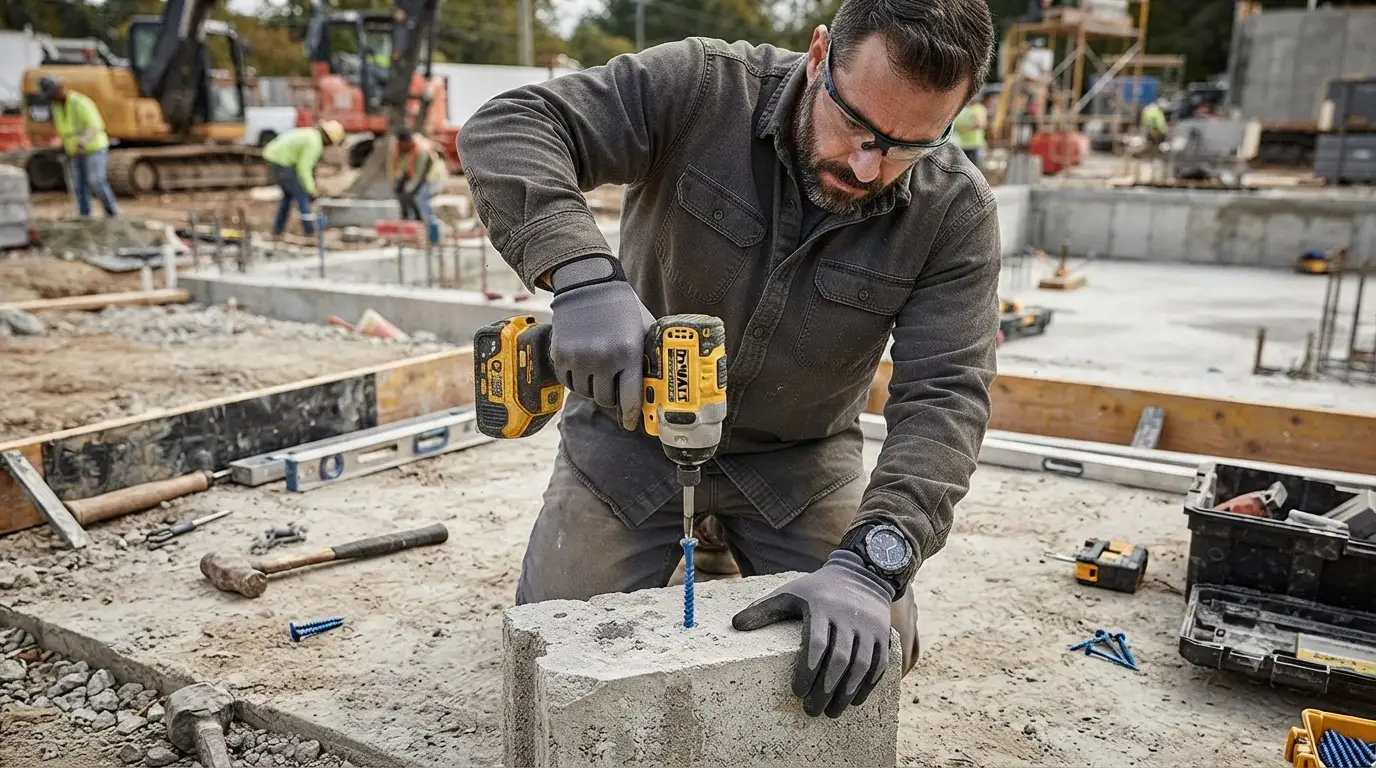

Installation: Drilling, Driving, and Torque
Tapcons aren't torque-to-spec fasteners the way wedge or sleeve anchors are — there's no published torque value to hit with a torque wrench. Instead, the goal is to drive the screw until the head (or washer, on hex-washer-head styles) sits fully flush and snug against the material being fastened, then stop.
- Drill the pilot hole to the correct undersized diameter and to a depth at least 1/4" deeper than the screw's embedment, so dust has somewhere to go and doesn't pack the threads.
- Blow or vacuum all dust out of the hole. This is the single most common cause of field failures — a dust-packed hole prevents the threads from engaging the masonry and the screw will feel "tight" while having almost no actual holding power.
- Drive the screw using a variable-speed driver at moderate speed — Tapcons cut their own threads as they go, and driving too fast generates heat that can shear the screw before it's fully seated.
- Stop as soon as the head or washer is snug against the surface. Don't continue tightening "for good measure" — overdriving a Tapcon strips the threads it just cut and the screw spins freely with zero holding power.
Standard Coating vs. Stainless Steel
Tapcons are sold in two main finishes:
- Blue ceramic-coated steel — the standard, lowest-cost option. Suitable for dry, interior applications. Not rated for exterior, below-grade, or high-moisture environments — the coating will eventually break down and the screw will rust and weaken.
- Stainless steel (305 or 410) — required for exterior installations, anything in contact with treated lumber (the chemicals in modern treated lumber corrode standard zinc/ceramic coatings rapidly), pools, coastal areas, and anywhere moisture is a long-term factor.
If you're unsure which environment you're in, stainless costs only a little more per screw and removes the guesswork entirely.
When a Tapcon Isn't the Right Fastener
Tapcons are excellent for light-to-moderate loads with good edge distance in solid material, but they're not a universal answer:
- Heavy structural loads (guardrails, large equipment, anything where failure is a safety issue) typically call for a mechanical expansion anchor like a wedge or sleeve anchor, which have published load ratings and torque specs. See Tapcon screws vs. concrete anchor bolts for a direct comparison of when each is appropriate.
- Cracked concrete or low edge distance changes the safe capacity significantly — a Tapcon that's fine in the middle of a slab may not be adequate within a few inches of an edge or crack.
- Repeated removal and reinstallation — once removed, a Tapcon's cut threads don't re-engage cleanly in the same hole. For anything that needs to come apart and go back together, use a sleeve anchor with a separate bolt, or a threaded insert.
Not sure which fastener your project actually needs?
The Anchor Specification Engine takes your substrate, load, and edge conditions and tells you whether a Tapcon is appropriate — or whether you need a wedge anchor, sleeve anchor, or hollow-wall fastener instead — along with the exact diameter, pilot hole, embedment depth, and length, calculated per ACI 318-19.
Frequently Asked Questions
Can I reuse a Tapcon hole if the screw breaks?
Generally no. A broken or stripped Tapcon leaves a hole that's now slightly oversized for the original pilot diameter. The most reliable fix is to drill a new hole at least 1" away from the failed one, or step up to the next-larger Tapcon diameter and re-drill the same hole at the correct larger pilot size.
Do Tapcons work in mortar joints?
No. Mortar is significantly weaker than the brick or block units themselves — always position the pilot hole in the solid body of the brick or block, never in the mortar joint between them.
What's the difference between Tapcons and "concrete screws" from other brands?
"Tapcon" is technically a brand name (originally ITW, now owned by ELCO/EJOT), but the term is used generically for any self-tapping concrete screw. Brands like Simpson Strong-Tie, Powers, and ELCO all make equivalent products — the sizing and pilot hole rules above apply across brands, but always check the specific manufacturer's packaging for any deviations.
