What Is Embedment Depth and Why It Matters

Of all the numbers on an anchor's spec sheet — diameter, torque, edge distance — embedment depth is arguably the one that does the most work. It's also one of the easiest to get wrong, because it's invisible once the anchor is installed and easy to confuse with the anchor's total length. This guide explains exactly what embedment depth is, why it has an outsized effect on an anchor's holding capacity, and how to make sure you're actually achieving it.

What Embedment Depth Actually Means

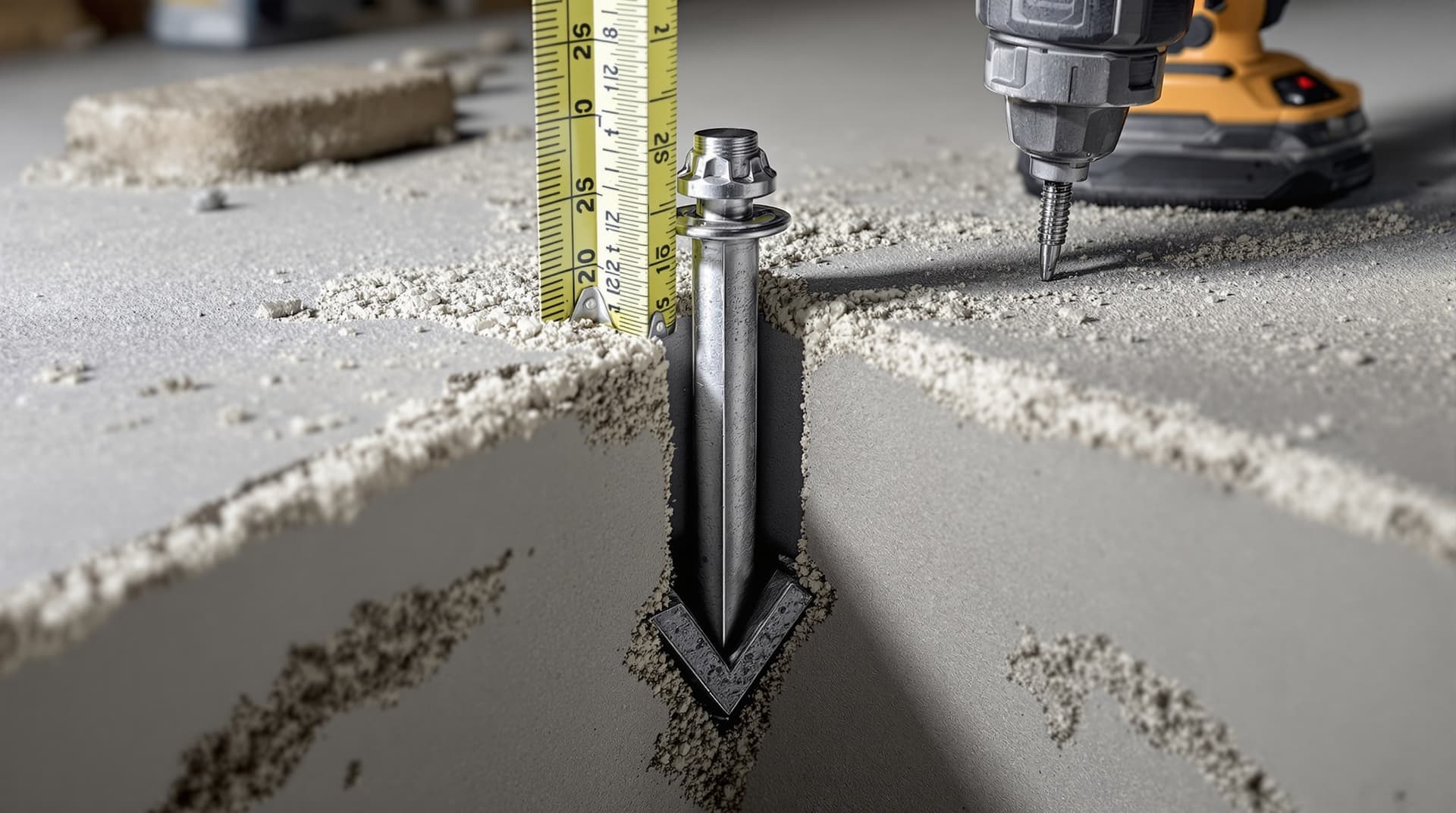

Embedment depth is the distance the anchor extends into the base material — not the anchor's total length. For a wedge anchor, sleeve anchor, or concrete screw, this is measured from the surface of the concrete to the deepest point the anchor reaches once installed. It is not the same as:

The anchor's total length — which includes the portion that remains above the concrete surface (the threaded stud, nut, and washer for a wedge anchor, for example).
The drilled hole depth — which should be slightly deeper than the embedment depth, to leave room for dust and ensure the anchor can seat fully (see our installation guide for the over-drill recommendation).

In ACI 318-19's notation, embedment depth is referred to as h_ef ("effective embedment"), and it's one of the core inputs to nearly every capacity calculation in Chapter 17.

Why Embedment Depth Has Such an Outsized Effect

Embedment depth doesn't just add a little extra holding power as it increases — for the concrete breakout failure mode (the most common governing failure mode for expansion anchors in tension), capacity increases roughly with h_ef^1.5. In plain terms: increasing embedment depth has a disproportionately large effect on capacity compared to most other variables.

Why? Picture the "breakout cone" of concrete that would separate from the slab if the anchor pulled out under tension — it's roughly cone-shaped, radiating outward from the embedded tip of the anchor up to the surface. A deeper anchor produces a larger cone — both wider at the surface and containing more concrete volume — which means more material has to fail before the anchor pulls free. Double the embedment depth, and you're not just doubling the cone's height; you're significantly increasing its surface area and volume too.

For adhesive anchors, the relationship is different but still significant: bond strength scales roughly linearly with embedment depth, because the bonded surface area (a cylinder around the threaded rod) increases directly with depth.

The practical takeaway: under-embedding an anchor by what seems like "just a little" can reduce its capacity by a lot more than that little amount would suggest. An anchor installed at 75% of its specified embedment depth doesn't have roughly 75% of its rated capacity — for breakout-governed connections, it could have meaningfully less.

Minimum vs. Specified Embedment

Manufacturer ESR reports typically specify a minimum embedment depth (below which the anchor isn't rated at all) and may also publish capacity values at one or more deeper embedment options for the same anchor and diameter. This is why you'll sometimes see the same diameter wedge anchor sold in multiple lengths — the longer versions aren't just "for thicker fixtures," they're often rated for meaningfully higher capacities at their deeper embedment.

If you're choosing between two lengths of the same anchor and your application allows for the deeper option (enough concrete thickness, no rebar interference), the deeper embedment is rarely a bad choice from a capacity standpoint — though it does mean drilling a deeper hole and more thorough dust removal.

How to Verify You're Hitting the Right Embedment

Because embedment depth is invisible once the anchor is set, getting it right comes down to controlling it during drilling and installation:

Mark your bit. Wrap a piece of tape around the drill bit at the depth you need to drill (embedment depth plus the over-drill allowance — typically 1/4" to 1/2" extra). Drill until the tape reaches the surface.
Use a depth stop if your rotary hammer has one. Many SDS-Plus and SDS-Max rotary hammers include an adjustable depth rod on the side handle.
Drive the anchor until it bottoms out at the correct position — for a wedge anchor, this typically means the washer sits flush against the fixture once the anchor is fully seated; if the anchor stops short of flush, the hole likely isn't deep enough.
Don't confuse "the anchor went in all the way" with "the anchor reached its rated embedment." If you used a shorter anchor than specified, it can go in "all the way" while still being under-embedded relative to its rating.

What Limits Embedment in Practice

Embedment depth isn't unlimited — several real-world constraints cap how deep you can (or should) go:

Concrete slab thickness. A typical residential slab might be 4" thick; an anchor with 3-3/4" embedment leaves very little margin and risks drilling through the bottom of the slab entirely, especially on uneven or sloped subgrades.
Rebar and embedded utilities. Deeper holes increase the chance of striking reinforcement or conduit. A magnetic rebar locator before drilling is worthwhile for any deep anchor in a structural slab.
The anchor's own design. Each anchor model has a maximum rated embedment beyond which the manufacturer hasn't tested or doesn't publish capacity data — going deeper than this doesn't necessarily help and isn't covered by the ESR.

If your slab thickness genuinely can't accommodate the embedment a given anchor needs for your load, that's a signal to either choose a different anchor type (a larger-diameter, shorter-embedment option; an adhesive anchor with different bond characteristics) or to involve an engineer for the specific situation — rather than installing an undersized anchor and hoping.

Embedment Depth and the Anchor Spec Tool

This is exactly the kind of variable that's tedious to look up manually across multiple manufacturers' ESR tables, but trivial for a calculator: the Anchor Specification Engine takes your required load and returns the anchor diameter and embedment depth combination that meets it — accounting for the h_ef^1.5 relationship automatically, per ACI 318-19.

Frequently Asked Questions

If I can't reach the specified embedment depth, can I just use a larger-diameter anchor instead?

Sometimes, but not automatically — a larger diameter has its own minimum embedment requirement, often deeper than the smaller anchor's. Don't assume "bigger diameter, shallower hole" without checking that specific anchor's ESR data. This is a good example of a situation where running the numbers through the Anchor Specification Engine is faster and more reliable than guessing.

Does embedment depth matter for concrete screws (Tapcons) the same way?

The same general principle applies — deeper embedment generally means more thread engagement and more holding power — but concrete screws have much shallower embedment requirements overall (often around 1"-1.5") and their capacity is governed more by thread engagement (a pullout-style failure mode) than by the concrete breakout cone that dominates for larger expansion anchors.

What happens if I drill too deep?

For most anchors, a hole that's deeper than necessary (within reason) isn't harmful — it's the over-drill allowance recommended in our installation guide. The exception is drop-in anchors and similar products that rely on a setting tool striking the anchor at a specific depth — too deep a hole can prevent the setting tool from properly expanding the anchor's internal plug.
