5 Types of Drywall Anchors — How Much Weight Can Drywall Hold? (2026)

Drywall is gypsum — a soft, chalky mineral — pressed between two sheets of paper. It has almost no shear strength, which is why a screw driven straight into it holds for a day and then rips out taking a fist-sized chunk of wall with it. An anchor doesn’t make drywall stronger; it spreads the load over enough surface area that the gypsum can actually bear it. Which anchor you need comes down to two numbers: how much weight, and how thick your wall is.

Drywall Anchor Types at a Glance

Comparing two specific types head-to-head? See Molly Bolt vs. Toggle Bolt. Working with brick, block, or concrete instead of drywall? See Masonry Anchors Explained.

How Much Weight Can Drywall Itself Hold?

How much weight can drywall hold has less to do with the anchor than with the wall material itself. Standard 1/2-inch gypsum wallboard is tested to a minimum 77-lb nail-pull rating under ASTM C473, the industry standard for gypsum panel products — independent lab testing puts the real-world average closer to 96 lbf, though that number drops substantially in very dry or humid conditions. That’s the ceiling for any anchor that loads the paper face directly in tension, before the anchor’s own hardware is even considered.

Why drywall fails: pullover, not pull-out

Drywall doesn’t fail by an anchor pulling free of the gypsum core — it fails by pullover, the fastener head or anchor flange tearing straight through the paper face and the compressed gypsum beneath it. That’s a tension failure, and gypsum board offers very little resistance to it. Anchors that grip the paper face directly — plastic expansion anchors, and self-drilling anchors loaded straight out from the wall — are limited by this same 77–100 lb ceiling, no matter what the anchor itself is rated to hold.

Anchors that brace flat against the back of the board sidestep this failure mode entirely. A toggle-style anchor doesn’t concentrate load at one point on the paper face — it spreads it across a wide bearing area on the hidden side of the wall, which is why a SnapToggle can legitimately exceed 200 lbs where a plastic anchor tops out around 25.

Tension vs. shear: why the same anchor holds different weight depending on the load

A drywall anchor’s rating changes depending on which direction the load pulls. Shear load (a shelf bracket pushing down and back into the wall) puts the gypsum core into compression ahead of the fastener — the stronger direction. Tension load (a hook pulling straight out, or anything hanging from a ceiling) pulls directly against the weak paper-and-gypsum sandwich. A 3/16-inch toggle bolt in 1/2-inch drywall, for example, holds over 190 lbs in shear but only around 50 lbs in tension — the same hardware, a 4x difference, purely from load direction.

Ceiling use: expect roughly half the wall rating

Every pound on a ceiling anchor is pure tension — there’s no shear component helping it along — so ceiling capacity runs well below the same anchor’s wall rating. E-Z Ancor’s own published specs show their Toggle Lock line rated for 100 lbs on a wall but only 50 lbs on a ceiling, roughly half. Their standard Twist-N-Lock self-drilling anchor (the type used in this guide) is explicitly not rated for ceiling use at all — check before assuming any self-drilling anchor works overhead. SnapToggle-style anchors are the exception: because they brace against the back of the board rather than gripping the paper face, TOGGLER rates SnapToggle as suitable for ceiling installation.

For anything genuinely heavy overhead — a ceiling fan, a hanging plant shelf, anything you don’t want testing gravity twice — hit the joist directly if you possibly can. An anchor is a fallback, not the first choice, for ceiling loads.

Note: the Gypsum Association’s own standards (GA-216, ASTM C514, ASTM C1002) govern how wallboard attaches to framing, not how much weight a hung object can safely bear — that’s the anchor manufacturers’ own published data, cited above.

Drywall Anchor Drill Bit Size Chart

Unlike concrete anchors, drywall anchor hole size isn’t about matching the anchor’s own diameter — for toggle-style anchors, the hole has to clear the folded wings, which means a bit that looks oversized for the bolt is actually correct.

Always drill through the paper face slowly to avoid tearing, then let the bit do the work through the gypsum core. For solid concrete or masonry anchor sizing instead, see our complete concrete anchor drill bit size chart.

Plastic Expansion Anchor

The cheapest, most common anchor in any hardware store. A ribbed plastic body goes into a pre-drilled pilot hole, and driving the screw in spreads the ribs against the sides of the hole. Fast, cheap, and fine for genuinely light loads — but the plastic itself is the weak point, and it will not hold anything you’d be upset to see fall. The plastic body typically ships in two styles: a solid ribbed sleeve for a straightforward pilot-hole install, and a self-tapping thread variant that grips slightly better in softer or already-damaged gypsum. Either way, the anchor only works if the surrounding paper face and gypsum core are intact — drive it into a hole that’s already chipped or oversized and the ribs have nothing solid to bite into. It’s the right call for curtain clips, doorbell buttons, small picture frames, and anything you’d shrug off if it came loose. For anything heavier, the jump to a self-drilling or toggle-style anchor is worth the extra minute of work.

Installing a Plastic Expansion Anchor

1. Drill a pilot hole matching the anchor’s diameter (see the drill bit size chart above).
2. Tap the anchor into the hole until it sits flush with the wall surface.
3. Drive the screw through your fixture and into the anchor until it seats — the ribs expand against the sides of the hole as the screw goes in.
4. Stop as soon as the screw is snug. Overdriving flares the ribs too far and can crack the surrounding gypsum, which weakens the hold rather than improving it.

Self-Drilling Threaded Anchor

A sharp-tipped anchor with aggressive external threads that cuts its own hole — no drill required, just a screwdriver. Available in nylon (lighter duty, forgiving if over-driven) or zinc alloy (stronger, better for anything with real weight). This is the anchor to reach for when you want more than a plastic expansion anchor but don’t want to deal with a toggle. Color-coding varies by brand, but the split is consistent: nylon versions flex slightly under stress and tend to strip cleanly rather than crack the surrounding drywall, making them more forgiving for a first attempt. Zinc versions hold noticeably more but transmit more torque into the gypsum while driving, so a slow, steady hand matters more than raw drill speed. Because the anchor cuts its own thread rather than gripping a pre-formed hole, a stripped-out anchor usually means moving over an inch or two rather than trying to reuse the same spot. Reach for these for curtain rods, mirrors, and light shelving where a plastic anchor feels marginal.

Installing a Self-Drilling Threaded Anchor

1. Position the anchor’s tip against the wall where you want it — no pilot hole, no drill.
2. Drive it in with a Phillips screwdriver, or a drill on low torque, turning until the flange sits flush against the wall. Full drill speed can strip the shallow thread it’s cutting into the gypsum.
3. Drive your screw into the anchor’s own threaded body to mount the fixture.

Each anchor’s rating is per job, not per anchor — two 75-lb anchors do not hold 150 lbs between them.

Molly Bolt

A metal sleeve anchor that goes into a pre-drilled hole and flares open behind the drywall as the screw is tightened, gripping the back side of the panel. Stronger than plastic or self-drilling anchors and a good middle-weight option — but the sleeve is permanent once set, and the screw is the only removable part. Mollies come in two head styles: a screwdriver-driven type that flares the sleeve as you tighten it, and an older hammer-set style where you tap the collar flush before driving the screw. Both need enough depth behind the drywall for the sleeve to fully open, so they’re a poor fit for walls backed tightly by insulation or a second layer of board. Once the sleeve flares, it’s there permanently — there’s no folding it back to pull the anchor out cleanly, which is the main reason toggle-style anchors have mostly replaced mollies for anything meant to be reusable. Still a solid, inexpensive step up from plastic for towel bars and mid-weight fixtures.

Standard Toggle Bolt

A machine-threaded bolt with spring-loaded wings that fold flat to pass through a drilled hole, then spring open behind the wall to brace against the back side — similar principle to a molly bolt but with far more surface area gripping the drywall. The catch: if you ever remove the screw, the wings fall inside the wall cavity and you start over with a new hole. Wing spring strength varies by manufacturer and by bolt diameter — a 1/8-inch toggle’s wings pop open with noticeably less force than a 1/4-inch version, which matters when you’re guessing at wall cavity depth in an unfamiliar house. Because the wings only bear on two narrow points rather than a full flat channel, overtightening is the most common failure mode — it can crack the gypsum in a small ring around the hole well before the bolt itself is stressed. They’re inexpensive and available everywhere, which keeps them a reasonable default, but if you know you’ll want to remove the screw later, a strap-style toggle avoids the wings-fall-inside-the-wall problem entirely.

Heavy-Duty Strap Toggle (SnapToggle)

The strongest hollow-wall anchor made, and the one every serious source converges on recommending for TV mounts, grab bars, and cabinets. Instead of spring wings, a rigid plastic toggle rides behind the wall on a break-away strap — once set, you can remove and reinstall the screw as many times as you want without losing the toggle inside the wall. Rated well past 100 lbs depending on channel size, and works on wall thicknesses up to roughly 3-3/8″. SnapToggle-style anchors come in a range of bolt diameters and wall-thickness ranges, so matching the channel size to your actual wall and the item you’re mounting matters more than defaulting to whichever pack is on the shelf. Beyond the standard zinc-plated steel version, a stainless-steel option exists for bathrooms, humid basements, or anything near exposure to moisture. The channel’s flat bearing surface is also why electricians and cabinet installers reach for it first on anything meant to stay mounted long-term — there’s no wing spring to fatigue over years of vibration, and the bolt can be removed and reinstalled repeatedly without ever losing the anchor behind the wall.

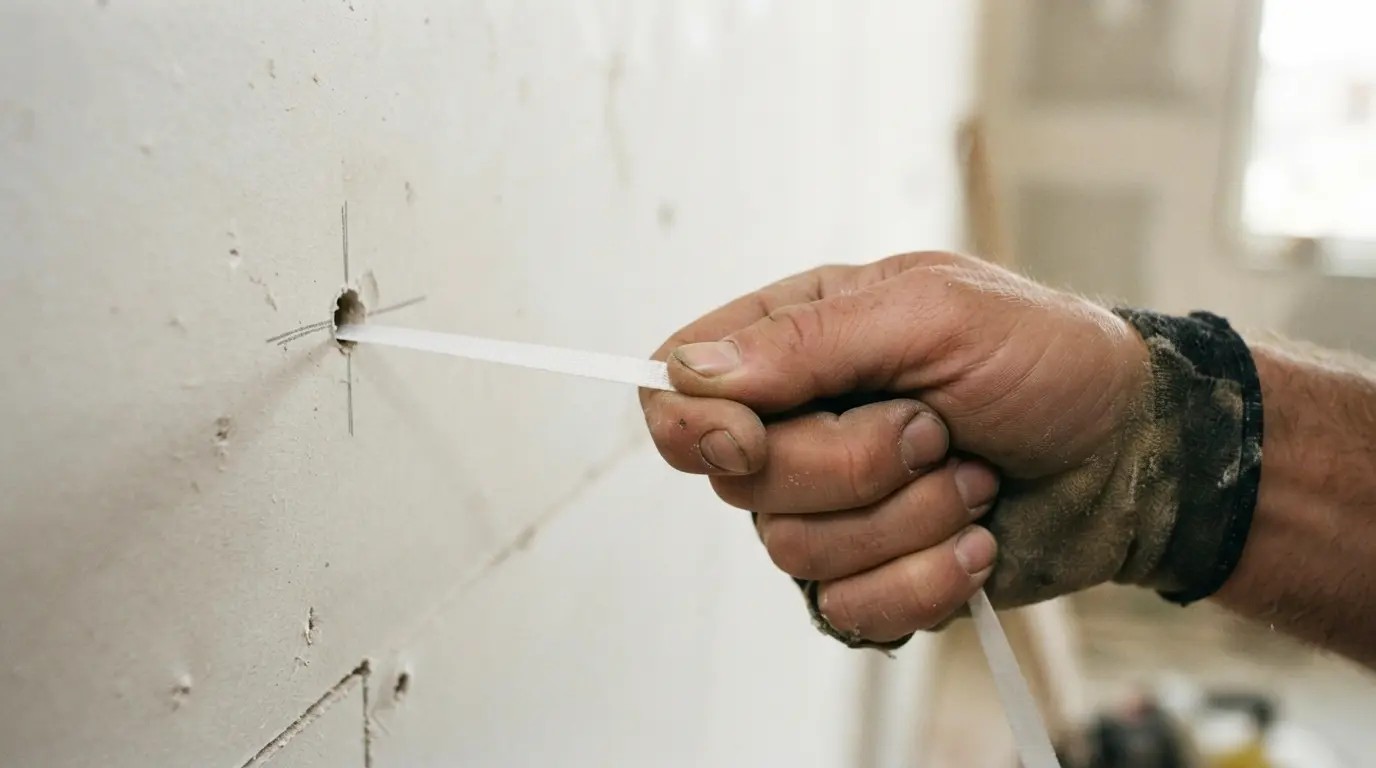

Pulling the SnapToggle strap taut seats the wing flat against the back of the wall before the strap snaps off flush.

Installing a SnapToggle

1. Drill the full clearance hole — typically 1/2 inch, large enough for the folded toggle wing to pass through (see the drill bit size chart above).
2. Fold the wing flat and feed it through the hole until it clears the back of the drywall and springs open.
3. Pull the strap taut, drawing the wing flush against the hidden side of the wall — you’ll feel it stop pulling once it’s seated.
4. Snap the excess strap off flush with the wall face.
5. Thread the bolt through your fixture into the toggle’s channel and tighten.

When an Anchor Isn’t Enough

No drywall anchor changes the fact that you’re fastening into a sheet of compressed chalk. For anything heavy, valuable, or safety-related — wall-mounted TVs, bathroom grab bars, tall furniture, wall-hung cabinets — find the stud. A stud finder and a few minutes of patience beats any anchor rating on the package. If a stud genuinely isn’t available where you need it, that’s exactly when a heavy-duty strap toggle earns its higher price — not as a substitute for good judgment, but as the real fallback when there’s no wood to hit.
