Why Drill Bits Burn or Break (And How to Prevent It)

The High Cost of Burnt and Broken Drill Bits

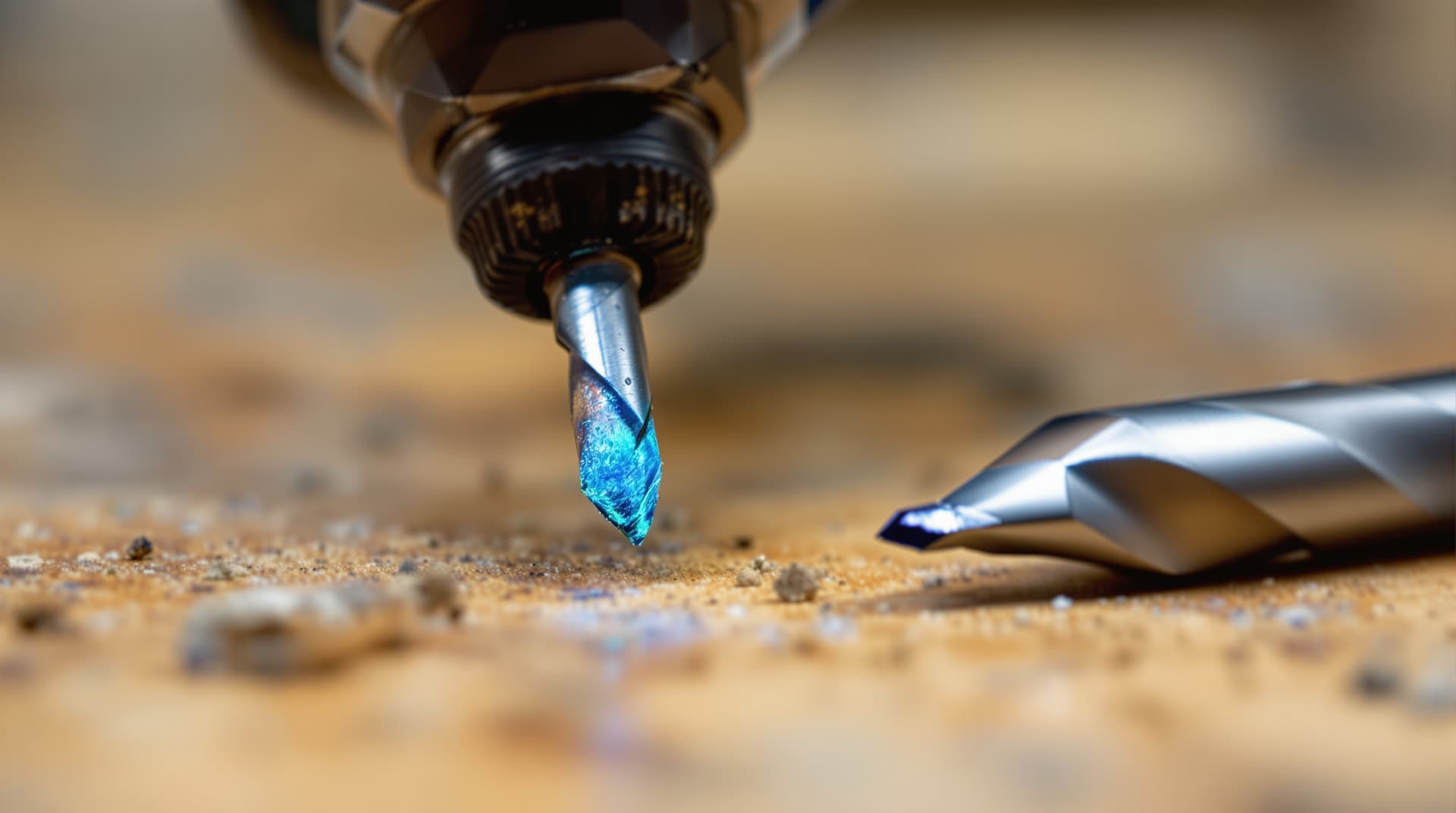

Every contractor knows the smell: that sharp, acrid scent of scorching steel and burning wood. You pull the drill back, and the tip of your bit is blunted, blackened, or completely snapped in half. Burning or breaking drill bits is one of the most frustrating setbacks on a job site, but it is almost entirely preventable. Drill bits are consumable items, but they should never be single-use. More often than not, premature failure comes down to operator error, improper bit geometry, or unchecked heat buildup.

To stop destroying your cutting tools, you need to understand the physics of drilling, the limitations of the metals you are using, and the professional techniques required to bore clean, accurate holes in any material.

The Anatomy of Drill Bit Failure: Why It Happens

Drilling is an inherently violent process. As the cutting edges (the lips) of the drill bit shear away material, they generate immense friction. In the world of power tools, friction equals heat. When temperatures at the cutting tip exceed the threshold of the bit's material, the metal loses its temper. For standard High-Speed Steel (HSS), this happens around 1,000°F. Once the steel softens, the sharp cutting edges round off. The bit stops shearing and starts rubbing, rapidly accelerating the heat buildup until the bit turns blue or black—a state known as a "burnt bit."

Breakage, on the other hand, is a catastrophic mechanical failure. It occurs when the applied torque or lateral force exceeds the bit's shear strength. This happens when a bit binds in a deep hole, when lateral pressure is applied (bending the bit during operation), or when a user pushes too hard just as the bit punches through the back of a workpiece, causing the flutes to snag aggressively.

When Friction and Pressure Matter Most

Not all materials present the same risk to your bits. Pushing a bit through pine framing or standard drywall is incredibly forgiving. However, driving a bit into dense, unyielding materials requires precision.

• Metals (Steel, Stainless, Cast Iron): This is where most drill bits go to die. High RPMs on hard metals will instantly destroy a bit. Stainless steel is particularly notorious because it work-hardens; if your bit rubs instead of cuts, the steel immediately becomes harder than the drill bit itself.
• Hardwoods and Exotics: Dense woods like hickory, white oak, and tropical exotics contain natural resins. These resins heat up quickly and cake onto the bit, trapping heat against the cutting edge and scorching both the wood and the tool.
• Concrete and Masonry: Drilling masonry requires rotary hammer action. Using the wrong bit or hitting hidden rebar without a specialized rebar-cutter will instantly shatter a standard masonry tip.

Comparing Drill Bit Materials: Matching Alloy to Application

Using standard carbon steel on hardened metal is a guaranteed recipe for a burnt bit. You must match the metallurgy to the application. If you want a deep dive into outfitting your toolbox, check out our comprehensive guide to finding the right drill bit for every type of material. Here are the core categories:

Standard High-Speed Steel (HSS) and Black Oxide

Standard HSS bits are the baseline for general-purpose drilling in wood, PVC, and mild steel. Black oxide coatings add a layer of corrosion resistance and slight lubricity. However, they lack the extreme heat resistance required for heavy metal fabrication.

Titanium Coated (TiN)

Titanium Nitride bits are coated to reduce friction, allowing them to run cooler and stay sharper longer than plain HSS. However, titanium is merely a surface coating. Once that gold-colored layer wears off from heavy use or sharpening, you are left with standard HSS. When deciding between titanium or cobalt bits, remember that titanium is for longevity in mild materials, not for high-heat applications.

Cobalt (M35 and M42)

Cobalt bits are the undisputed kings of heavy-duty metal drilling. Unlike titanium, cobalt is an alloy—usually 5% (M35) or 8% (M42) cobalt mixed directly into the steel matrix. This means the extreme heat resistance (capable of withstanding up to 1,100°F) goes all the way through the core. You can sharpen a cobalt bit repeatedly without losing its heat-resistant properties. They are the best choice when looking for high-performance bits for steel and metal.

Carbide-Tipped

Carbide is incredibly hard and highly heat-resistant, making it essential for masonry, concrete, and tile. However, it is also highly brittle. A carbide-tipped bit can withstand the brutal axial impact of an SDS hammer drill, but lateral bending or using it on structural steel will cause the tip to chip and snap.

Common Mistakes That Destroy Drill Bits

Most bits fail because of operator error. Avoiding these common mistakes will drastically extend the life of your cutting tools.

• Drilling Too Fast (High RPM): This is the number one killer of bits. Most DIYers pull the drill trigger to maximum RPM regardless of the material. When drilling steel, high RPMs generate instant, destructive heat.
• Applying Too Little Pressure: Counterintuitively, babying a drill bit on metal causes it to rub instead of cut. This creates friction without material removal, immediately work-hardening the metal and burning the bit. You must apply heavy pressure to force the cutting edge to bite.
• Applying Lateral Pressure: Drill bits are engineered to handle incredible axial loads (pushing straight down). They have very little lateral strength. Pushing sideways to "wallow out" a hole is a primary cause of snapped bits, particularly with smaller diameters under 1/4-inch.
• Ignoring Chip Clearance: In deep holes, wood chips or metal swarf pack tightly into the flutes. This debris traps heat and causes the bit to bind and snap. Failing to clear the hole is one of the most frequent errors people make when using a drill.

Pro Tips for Preventing Burnt and Broken Bits

Professional tradespeople rely on specific techniques to get maximum efficiency and longevity out of their tools. Implement these best practices on your next job.

1. Master Your Speeds and Feeds

The golden rule of drilling is simple: Large bits require low RPMs; small bits require high RPMs. Furthermore, the harder the material, the slower you must go. For a 1/4-inch bit in mild steel, aim for around 1,000 RPM. For a 1/2-inch bit in the same material, drop it to 500 RPM. Apply firm, steady pressure. You want to see continuous, spiral metal chips ejecting from the hole, not metallic dust or tiny shards.

2. Always Use Cutting Fluid on Metal

Drilling dry through thick metal generates unchecked heat. Always use a dedicated cutting fluid. Products like Tap Magic, Oatey Dark Cutting Oil, or WD-40 Specialist Cutting Oil lubricate the cutting edge and rapidly dissipate heat. Just a few drops will dramatically extend the life of a cobalt or HSS bit.

3. Use the Peck Drilling Technique

When drilling deep holes—whether in thick timber or steel—use peck drilling. Plunge the bit in half an inch, then pull it completely out while the drill is still spinning to eject the chips. Plunge again, repeating the process until you break through. This keeps the flutes clear and the bit cool.

4. Pay Attention to Bit Geometry

When drilling hard materials, standard 118-degree tips require heavy thrust to start and tend to "walk" or wander across the material. Upgrade to bits with a 135-degree split point. The flatter angle bites into metal much faster, prevents walking (eliminating the need for a center punch), and reduces the sheer force required to penetrate the surface.

5. Match the Bit Size to Your Anchors Exactly

When working with concrete, a binding bit often snaps and leaves you with a ruined hole. If you aren't absolutely certain which diameter drill bit to use for your concrete anchors, always consult the anchor manufacturer's exact specifications. A masonry bit even 1/16-inch too large will cause anchor failure, while one too small will cause catastrophic bit binding when drilling.

Buying Advice: Investing in the Right Bits

Stop buying cheap, unbranded 100-piece drill bit sets from the discount bin. The metallurgy is poor, the heat-treatment is inconsistent, and the manufacturing tolerances are loose, leading to runout (wobble) and immediate breakage. You will spend more money replacing cheap bits than if you had purchased professional-grade tools from the start.

Instead, invest in jobber-length bits from reputable industrial manufacturers like Norseman, Champion, or Drill America. If you prefer buying from big-box stores, stick to the professional lines, such as Milwaukee's Cobalt Red Helix or Bosch's premium cobalt sets. If you work heavily with structural steel or automotive fabrication, buy a dedicated index of M35 or M42 Cobalt bits with 135-degree split points.

Conclusion

Drill bits are precision cutting tools engineered to endure massive amounts of stress, but they cannot defy physics. Heat and lateral force are their worst enemies. By slowing down your RPMs, applying the right amount of heavy pressure, using proper lubrication, and investing in high-quality alloys, you can stop burning through your bits and start working much more efficiently. Treat your cutting tools with respect, use the right bit for the right material, and they will save you time, money, and intense frustration on the job site.
