Best Concrete Anchors for Home Use (2026 Guide)

Driving a standard screw into concrete is a guaranteed way to strip your bit, ruin your fastener, and leave yourself with a useless, shallow crater in your wall. Whether you are mounting a heavy 75-inch TV, installing floating garage shelves, or securing kitchen base cabinets into a masonry foundation, the difference between a professional result and a structural failure comes down to selecting the correct fastener. In the world of masonry, holding power relies entirely on the quality of your concrete anchor and the precision of your installation.

This guide breaks down the mechanics, types, load ratings, and top product picks for concrete anchors so you can build with confidence, avoid catastrophic pull-outs, and ensure your home projects stay exactly where you put them.

What Are Concrete Anchors and How Do They Work?

Concrete anchors are specialized fasteners designed to attach fixtures to solid concrete, hollow block, brick, or mortar. Standard wood screws rely on wood fibers to compress around the threads. Concrete, however, is a brittle, non-compressible aggregate material. Because concrete cannot compress around a thread, anchors must employ mechanical methods to create a secure hold.

There are two primary ways concrete anchors generate their holding power:

• Friction and Expansion: The anchor is inserted into a pre-drilled hole. As you tighten the bolt or nut, a mechanism at the base of the anchor expands outward, wedging itself tightly against the concrete walls.
• Mechanical Interlock (Thread-Tapping): Hardened steel screws with specialized high-low thread profiles physically cut into the concrete dust and aggregate, tapping their own grooves as they are driven into the hole.

When to Use Specific Concrete Anchors

Selecting the right fastener depends heavily on the base material (solid concrete vs. hollow block) and the load requirements (sheer weight pulling down vs. tension pulling out). Before starting any job, you should understand the various types of concrete anchors and exactly when to deploy them.

Light-Duty Applications (Up to 30 lbs)

For mounting lightweight items like thermostats, small picture frames, or lightweight smoke detectors into masonry, plastic conical anchors or ribbed wall anchors are sufficient. You pre-drill a small hole, tap the plastic plug in flush with a hammer, and drive a standard sheet metal screw into it. As the screw enters, the plastic expands outward. These should never be used for heavy loads or overhead installations.

Medium-Duty Applications (30 to 150 lbs)

This is the domain of the concrete screw, universally referred to by the brand name Tapcon. These are ideal for attaching furring strips, electrical junction boxes, exterior conduit clips, or medium-weight shelving. Concrete screws are removable, making them highly versatile for temporary or adjustable installations. See our Tapcon sizing guide for the exact diameter and pilot hole for your application.

Heavy-Duty Applications (150+ lbs)

When you are bolting a safe to a concrete slab, securing a ledger board for a deck, or installing heavy garage racking, you need heavy-duty expansion anchors. Wedge anchors and sleeve anchors dominate this category. A 1/2-inch wedge anchor embedded 3 inches deep into solid 2,000 PSI concrete can boast an ultimate tension load exceeding 2,000 lbs. Always divide this ultimate load by a safety factor of 4 to determine the safe working load.

Load Ratings by Anchor Type and Diameter

The table below gives approximate ultimate tension loads in normal-weight 3,000-4,000 PSI solid concrete with proper embedment, along with the resulting safe working load using a 4:1 safety factor. These are general reference figures for comparison only — actual capacities vary by manufacturer, exact embedment depth, concrete strength, and edge/spacing conditions. Always use the manufacturer's published ESR data or the Anchor Specification Engine for a specific project.

Anchor	Diameter	Approx. Ultimate Tension	Approx. Safe Working Load (4:1)
Concrete screw (Tapcon)	3/16"	~400 lbs	~100 lbs
Concrete screw (Tapcon)	1/4"	~600 lbs	~150 lbs
Sleeve anchor	1/4"	~700 lbs	~175 lbs
Sleeve anchor	3/8"	~1,200 lbs	~300 lbs
Wedge anchor	1/4"	~800 lbs	~200 lbs
Wedge anchor	3/8"	~1,600 lbs	~400 lbs
Wedge anchor	1/2"	~2,350 lbs	~590 lbs

For a deeper dive into how these numbers are calculated and how embedment depth, edge distance, and concrete strength each affect them, see how much weight concrete anchors can hold.

Top Picks by Application

These are widely-used, well-reviewed products in each category — always confirm the specific diameter and length against your project's requirements before ordering.

• Best for light-duty (plastic anchors): Hillman Conical Plastic Concrete Anchors — inexpensive, reliable for picture frames, thermostats, and other sub-30lb items.
• Best concrete screw (medium-duty): Tapcon 3/16" x 2-3/4" Concrete Screws — the standard for furring strips, junction boxes, and shelving.
• Best wedge anchor (heavy-duty): Simpson Strong-Tie Strong-Bolt 2, 1/2" — for structural connections, racking, and heavy equipment mounting.
• Best sleeve anchor (brick/block): Red Head Sleeve Anchor, 1/4" — handrails, electrical panels, and window frames in brick or CMU.
• Best for exterior/wet environments: Simpson Strong-Tie Stainless Steel Wedge Anchor — pergolas, railings, pool decks, and anything near moisture or salt air.

Key Differences and Comparisons

Contractors often debate which anchor is superior for a given task. Making the wrong choice can compromise your structural integrity.

Wedge Anchors vs. Sleeve Anchors

Wedge anchors are strictly for solid concrete. They feature a solid steel shaft with a small expanding clip at the bottom. Because the expansion happens over a very small surface area, they require the immense compressive strength of solid, poured concrete. Sleeve anchors, by contrast, feature a full-length sheet metal sleeve that expands along the entire shaft. This makes sleeve anchors the better choice for questionable base materials like old brick, mortar joints, or hollow CMU blocks where the base material might crumble under concentrated pressure.

Concrete Screws vs. Expansion Anchors

Concrete screws are fast, require smaller holes, and can be backed out if you make a mistake. However, they lack the sheer holding power of a heavy-duty bolt. If you are struggling to decide between threaded options and heavy-duty expansion fasteners, understanding the load ratings of Tapcon screws versus traditional concrete anchor bolts will dictate the right choice for your specific load profile.

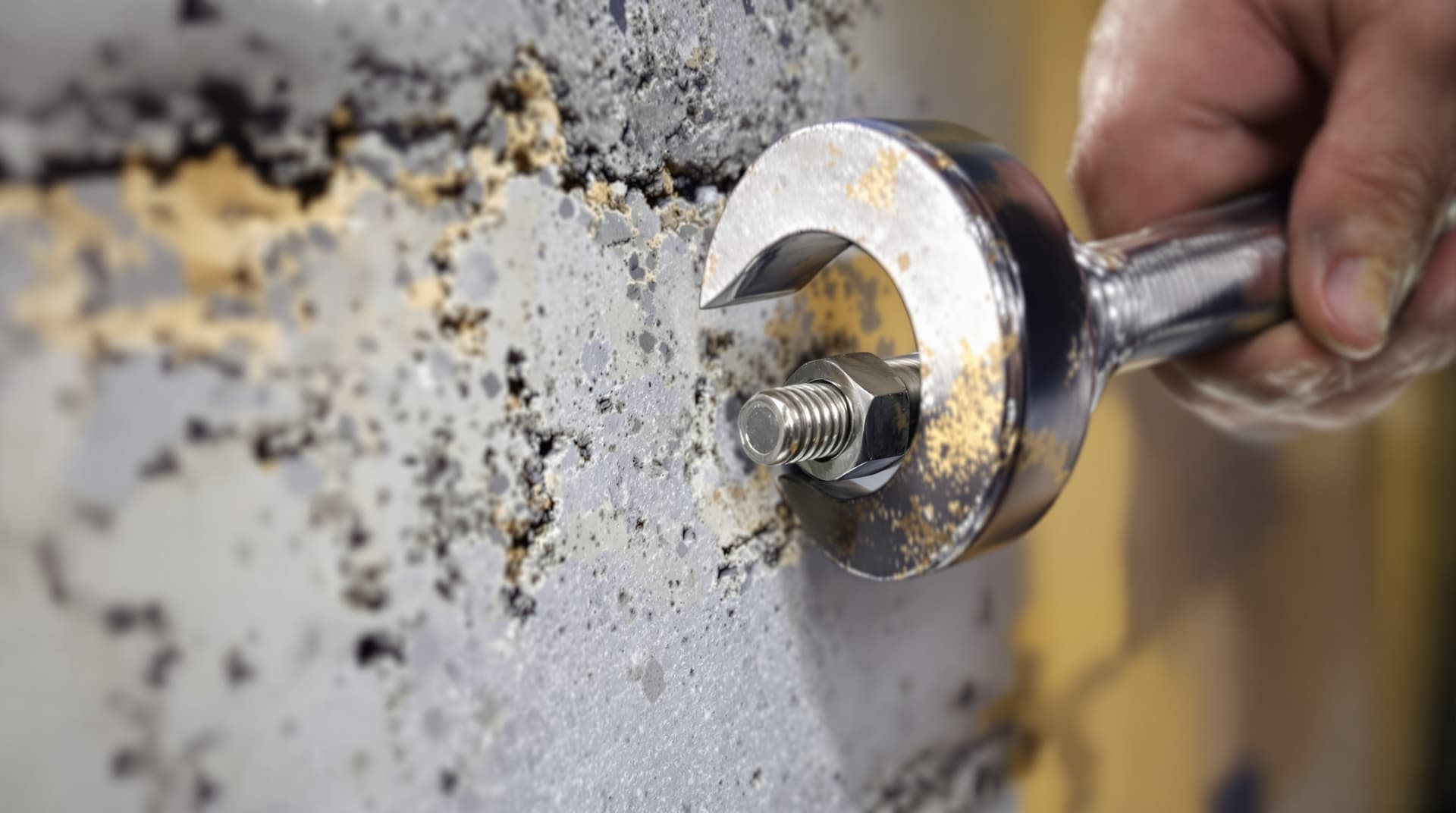

Step-by-Step Installation (Expansion-Style Anchors)

While each anchor type has manufacturer-specific instructions, the core installation sequence for wedge, sleeve, and similar expansion anchors follows the same pattern:

1. Mark and drill the hole using a carbide-tipped masonry bit matching the anchor's stated diameter (1:1 for wedge and sleeve anchors), to a depth at least 1/4"-1/2" deeper than the anchor's embedment.
2. Clean the hole thoroughly — compressed air or a blow bulb, then a wire brush, then air again. Repeat until no more dust comes out. This step alone can make the difference between rated capacity and a connection that fails under load.
3. Insert the anchor by hand or with light hammer taps until the expansion section is fully seated at the required embedment depth — check this against a depth mark on the anchor or bit.
4. Thread on the nut/washer (for wedge and sleeve anchors) and tighten with a torque wrench to the manufacturer's specified value — typically in the 40-50 ft-lb range for a 1/2" wedge anchor, but always check the specific product.
5. Verify the connection — the fixture should sit flush with no visible movement at the anchor head. If a wedge anchor spins freely without tightening, the expansion clip likely didn't engage; remove and re-drill a new hole rather than reusing the same one.

For concrete screws (Tapcons), the sequence is similar but the hole is deliberately undersized rather than matched 1:1, and the screw is driven (not torqued to a spec value) until snug — see our Tapcon sizing guide for the diameter-specific pilot holes.

Pro Tips for Flawless Installation

Even the highest-rated anchor in the world will fail if installed improperly. Follow these expert guidelines to ensure a rock-solid hold.

• Clean the Hole Relentlessly: Once you finish drilling, the hole is full of microscopic concrete dust. If you insert an expansion anchor into a dirty hole, that dust acts like ball bearings, drastically reducing friction and pull-out strength. Use a blow bulb, a can of compressed air, or a shop vacuum, followed by a wire brush, to clean the hole completely.
• Drill Deeper Than the Anchor: Always drill your hole at least 1/4-inch to 1/2-inch deeper than the total length of the anchor. This allows space for any residual dust to settle at the bottom without blocking the anchor from seating fully.
• Use the Right Tools: A standard 18V drill/driver will struggle endlessly to penetrate mature concrete. To drill clean, accurate holes without burning up your bits, you must use a true hammer drill designed for masonry. For anchors larger than 3/8-inch, step up to a rotary hammer with SDS-Plus bits.

Common Mistakes to Avoid

Over-torquing: Tightening a concrete screw or wedge anchor too much is the fastest way to ruin your project. With concrete screws, over-torquing strips the threads they just cut into the concrete, rendering the anchor useless. With wedge anchors, you risk spalling the concrete or snapping the bolt. Use a torque wrench and adhere to the manufacturer's specified foot-pounds — or let the Anchor Specification Engine calculate the correct torque automatically.

Using the Wrong Bit Size: Concrete anchors require precise tolerances. If your anchor calls for a 5/32-inch bit, using a 3/16-inch bit will result in a hole that is too wide, meaning the anchor will spin freely and never grip. Always verify the exact drill bit size required for your anchor, which is typically stamped on the box.

Ignoring Edge Distance and Spacing: Drilling too close to the edge of a concrete slab will cause the concrete to blow out or crack when the anchor expands. The general rule of thumb is to keep anchors at least 5 anchor-diameters away from any unsupported edge, and space anchors at least 10 anchor-diameters apart from one another to prevent their stress cones from overlapping. See our anchor spacing and edge distance guide for the full reference table.

Buying Advice for 2026

When purchasing concrete anchors for home use, you are looking for material durability and brand reliability. The structural steel aisle is not the place to hunt for off-brand bargains.

Material Selection: Standard zinc-plated carbon steel anchors are excellent for dry, interior spaces. However, if you are mounting a pergola to an outdoor patio, securing a railing, or working in a basement prone to moisture, zinc will rust and fail over time. For exterior or wet environments, spend the extra money on hot-dipped galvanized anchors, or better yet, Type 410 or Type 316 stainless steel.

Trusted Brands: Stick to industry standards that provide clear load rating charts and ICC-ES evaluations. ITW Tapcon remains the gold standard for concrete screws. For heavy-duty wedge and sleeve anchors, Red Head (also by ITW), Simpson Strong-Tie (specifically their Strong-Bolt and Titen HD lines), and Hilti are the absolute best in the business. These manufacturers precision-machine their threads and wedges for maximum reliability.

Conclusion

Tackling masonry mounting projects does not have to be intimidating. By identifying your base material, calculating the weight of your load, and selecting the appropriate anchor type, you can achieve permanent, professional-grade results. Remember that preparation is just as important as the hardware: invest in a quality hammer drill, use the exact size masonry bit required, and always clean your holes thoroughly before installation. Or skip the lookup tables entirely and let the Anchor Specification Engine calculate everything — anchor type, diameter, embedment, and torque — for your exact project in under a minute.

Frequently Asked Questions

How do I know if my wall is solid concrete or hollow block?

Drill a small test hole. Solid concrete produces continuous resistance and fine gray dust the whole way through. Hollow block will give way suddenly partway through as the bit breaks into the hollow core, and the dust will often change color or stop entirely for a moment. If you hit a hollow core, switch to a sleeve anchor or toggle-style anchor rather than a wedge or drop-in anchor.

Can I remove and reuse a concrete anchor hole?

Concrete screws (Tapcons) generally cannot be reliably reinstalled in the exact same hole once removed — the cut threads don't re-engage cleanly. Wedge and sleeve anchors are designed to be permanent once expanded. If you need to relocate a fixture, drill a new hole at least a few inches away rather than reusing the old one.

What's the minimum concrete age/cure time before installing anchors?

Concrete continues gaining strength for weeks after pouring, but most expansion anchors can be installed once the concrete has reached its initial design strength — typically around 7 days for normal curing conditions, though always check the specific anchor manufacturer's requirements and your concrete supplier's guidance for the mix used.
