Concrete Anchor Selection Chart (Homeowner’s Quick Reference Guide)

Walking down the fastener aisle at a big-box hardware store can be an intimidating experience. You are met with a dizzying wall of blue, silver, and gold hardware, all claiming to be the ultimate solution for holding heavy objects to concrete, brick, and block. Choosing the right concrete anchor is not a guessing game; it is a matter of safety and structural integrity. Selecting the wrong fastener, or installing it incorrectly, can result in cracked masonry, stripped holes, or an abrupt and dangerous fixture failure.

This concrete anchor selection guide cuts through the marketing noise. Whether you are bolting a heavy-duty workbench to a garage floor, mounting a flat-screen TV to a brick fireplace, or securing sill plates for a new partition wall, you need to match the fastener to the base material, the load requirement, and the environment. Here is the chart, in table form, followed by the professional breakdown of why each pick makes sense.

Quick Selection Chart

Find your situation in the left column and read across for the recommended anchor type.

Situation	Recommended Anchor	Why
Solid concrete, light load (under ~50 lbs)	Concrete screw (Tapcon)	Fast, removable, minimal expansion stress
Solid concrete, medium load (~50-300 lbs)	Sleeve anchor or heavy-duty Tapcon	Good balance of strength and ease of install
Solid concrete, heavy/structural load (300+ lbs)	Wedge anchor	Maximum tension and shear capacity
Overhead / threaded rod, needs flush finish	Drop-in anchor	Flush female thread, removable bolt
Brick, mortar joint, or hollow CMU block	Sleeve anchor or concrete screw	Distributed expansion won't blow out weaker material
Drywall or hollow cavity (no solid backing)	Toggle / hollow-wall anchor	Expansion anchors have nothing to push against
Close to a slab edge (under 5 anchor diameters)	Concrete screw or adhesive anchor	Little to no outward expansion pressure
Cracked, old, or uncertain concrete condition	Adhesive/epoxy anchor	Chemical bond doesn't rely on expansion against sound concrete

Overview: Decoding the Concrete Anchor Selection Chart

Before you ever touch a drill, you must identify your base material and understand the forces acting on your fixture. Concrete anchors generally handle two types of loads: shear (the downward force of gravity pulling parallel to the wall) and tension (the pull-out force pulling perpendicular to the wall). Understanding the main types of concrete anchors on the market allows you to select a fastener that provides optimal holding power for your specific combination of load and material.

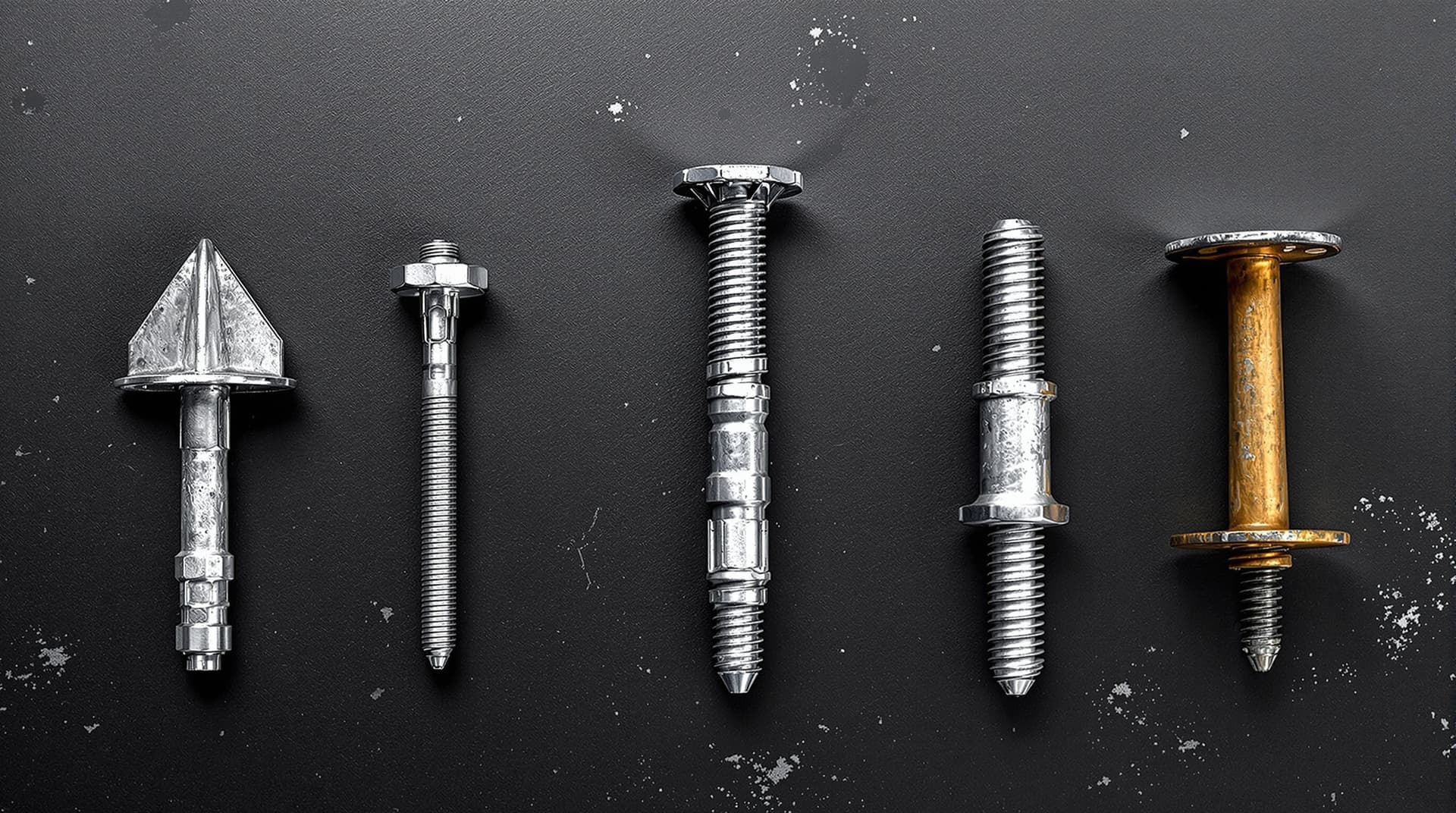

Anchors fall into four primary categories based on how they grip the masonry:

• Expansion Anchors: These rely on a wedge or sleeve that expands against the sides of the drilled hole when a nut or bolt is tightened.
• Thread-Cutting Anchors: These are specialized screws with hardened, serrated threads that cut their own path into the concrete.
• Chemical/Adhesive Anchors: These utilize a two-part epoxy injected into the hole alongside a threaded rod, bonding physically and chemically to the base material. (Usually reserved for extreme commercial loads).
• Toggle/Hollow-Wall Anchors: For situations with no solid material to expand against — drywall over a cavity or unfilled block cores. See the dedicated section in our concrete anchor types guide.

When to Use Specific Concrete Anchors

Use this quick reference breakdown to choose the correct fastener for your next project. We will focus on the mechanical anchors most commonly used by serious DIYers and residential contractors.

1. Concrete Screws (Tapcons)

Concrete screws, commonly known by the popular brand name Tapcon, are the undisputed kings of light-to-medium duty fastening. They are available in 3/16-inch and 1/4-inch diameters for standard applications, and larger diameters for heavier loads. See our Tapcon sizing guide for the exact pilot hole for each diameter.

• Best Base Materials: Solid concrete, hollow concrete block, brick, and mortar joints.
• Ideal Applications: Securing 2x4 furring strips to basement walls, mounting electrical junction boxes, hanging pipe brackets, and installing threshold plates.
• Key Advantage: They are removable. If you need to reposition a fixture, you can simply back the screw out.

2. Wedge Anchors

Wedge anchors are the heavy-duty workhorses of the construction industry. When tightened, a stainless steel clip expands at the base of the anchor, wedging itself irreversibly into the concrete. Standard sizes range from 1/4-inch all the way up to 1-inch in diameter.

• Best Base Materials: Solid, uncracked concrete ONLY. Never use a wedge anchor in hollow block or brick, as the intense expansion force will crack the masonry.
• Ideal Applications: Bolting down automotive lifts, securing structural sill plates, anchoring heavy machinery, and mounting structural steel columns.
• Key Advantage: Exceptional shear and tension load capacities. A standard 1/2-inch wedge anchor embedded 2-1/4 inches into solid concrete can boast an ultimate tension load exceeding 3,000 pounds.

3. Sleeve Anchors

Sleeve anchors look similar to wedge anchors but function differently. Instead of a small clip expanding at the very bottom, a full-length steel sleeve collapses and expands along the entire length of the fastener body as you tighten the nut.

• Best Base Materials: Brick, hollow concrete block, and mortar.
• Ideal Applications: Mounting grab bars in brick bathrooms, securing ledger boards to block walls, and hanging heavy gates on masonry columns.
• Key Advantage: Because the expansion is distributed along a wider, longer surface area, sleeve anchors will not blow out weaker or hollow masonry the way a wedge anchor will.

4. Drop-In Anchors

Drop-in anchors are internally threaded, female anchors designed to sit flush with the surface of the concrete. A setting tool is required to expand the internal plug before a bolt or threaded rod is inserted.

• Best Base Materials: Solid concrete.
• Ideal Applications: Suspending HVAC ductwork, hanging commercial lighting tracks via threaded rod, and flush-mount applications where the bolt may need to be removed repeatedly.
• Key Advantage: Leaves a clean, flush surface when the bolt is removed, eliminating trip hazards on floors.

Key Differences and Comparisons

When you are choosing between Tapcons and traditional anchor bolts, the decision almost always comes down to the base material and the weight of the fixture. Expansion anchors (wedge and sleeve) require significantly more torque to set, and they cannot be placed too close to the edge of a concrete slab without risking a blowout — see our spacing and edge distance guide for the specifics.

Concrete screws, on the other hand, apply virtually no expansion stress to the base material. This makes them far superior for fastening near the edge of a concrete step or patio. However, concrete screws cannot match the brute pull-out strength of a 1/2-inch or 5/8-inch wedge anchor.

Pro Tips for Flawless Installation

Even the most expensive, heavy-duty anchor will fail if it is installed poorly. Follow these professional best practices to ensure maximum holding power:

• Clean the Hole: This is the most frequently skipped step, and the most fatal. After drilling, the hole is packed with pulverized concrete dust. If you drive a concrete screw into a dirty hole, it will bind up and snap the head off. If you put a wedge anchor in a dirty hole, the expansion clip will slip on the dust rather than biting into the concrete. Always use a wire brush and compressed air or a shop vacuum to clean the hole entirely.
• Over-Drill the Depth: Always drill your hole at least 1/4-inch to 1/2-inch deeper than the anchor requires. This creates a "dust reservoir" at the bottom of the hole for any remaining debris to fall into, ensuring your anchor can sit fully flush.
• Use the Exact Drill Bit: Masonry anchors require precise tolerances. You cannot substitute a 5/16-inch bit if the anchor calls for a 3/8-inch bit. It is critical to know exactly what size drill bit to use. Furthermore, always ensure you are using ANSI-compliant masonry bits (ANSI B212.15), which guarantee the carbide tip is perfectly sized for anchor installation.
• The Right Tool for the Job: Concrete cannot be efficiently drilled with a standard power drill; the bit will simply spin and burn up against the hard aggregate. Whether you are dealing with a brick facade or poured foundation walls, it comes down to using a hammer drill versus a regular drill. A hammer drill provides the rapid, concussive blows required to shatter the masonry while the bit rotates. For the complete walkthrough, see how to install concrete anchors correctly.

Common Mistakes to Avoid

Contractors see the same DIY anchor failures time and time again. Avoid these common pitfalls to keep your projects secure:

Ignoring Edge Distance: Driving a massive wedge anchor two inches away from the edge of a concrete slab is a recipe for disaster. The expansion force will spall and break off the chunk of concrete. To avoid cracking your slab, always adhere to the manufacturer's specifications on minimum spacing and edge distance requirements. A general rule of thumb is to keep anchors at least five anchor-diameters away from any unsupported edge.

Over-Torquing: Tightening a nut with an impact wrench until it stops moving is a bad idea. Over-torquing can easily strip the threads, snap the bolt, or cause the anchor to pull itself out of the hole, completely destroying the concrete's internal grip. Use a calibrated torque wrench and follow the anchor's specific torque rating (e.g., a 1/2-inch wedge anchor typically requires around 40 foot-pounds of torque) — or let the Anchor Specification Engine calculate it for you.

Buying Advice: Materials and Top Brands

Not all steel is created equal. The environment where you are installing the anchor dictates the coating you need:

• Zinc-Plated Carbon Steel: The most common and inexpensive option. Strictly for dry, indoor use. They will rapidly rust if exposed to moisture or weather.
• Hot-Dipped Galvanized: Coated in a thick layer of zinc, these are excellent for outdoor use and humid environments. Highly recommended when bolting into pressure-treated lumber, which contains corrosive copper-based chemicals.
• Stainless Steel (Type 304 or 316): The gold standard for corrosion resistance. Required for marine environments, coastal applications, or anywhere submerged in water.

When purchasing structural anchors, stick to reputable, engineer-approved brands. Hilti (Kwik Bolt series), Simpson Strong-Tie (Strong-Bolt and Titen HD lines), ITW Red Head (Trubolt), and Tapcon are the industry leaders. Buying generic, no-name anchors online to save a few dollars is never worth the risk when structural integrity is on the line.

Conclusion

Selecting the right concrete anchor does not have to be a frustrating process of trial and error. By matching your base material—whether it is hollow block, vintage brick, or 4000-PSI poured concrete—to the appropriate expansion mechanism, thread-cutting screw, or adhesive system, you guarantee a secure, permanent fixture. Always prioritize a clean hole, accurate drilling depth, and the proper finish for your environment. Or skip straight to the answer: the Anchor Specification Engine takes everything in this chart and turns it into the exact anchor, size, and installation spec for your project.
